Overview

The 74FCT164245T 16-bit high-speed, low-power 3.3V to 5V translator is designed to interface between a 3.3V bus and a 5V bus in a mixed 3.3V/5V supply environment. This enables system designers to interface TTL-compatible 3.3V components with 5V components. The Direction and Output Enable controls operate these devices as either two independent 8-bit transceivers or one 16-bit transceiver. The 74FCT164245T is ideally suited for driving high-capacitance loads and low-impedance backplanes. The 74FCT164245T operates at -40 °C to +85 °C.

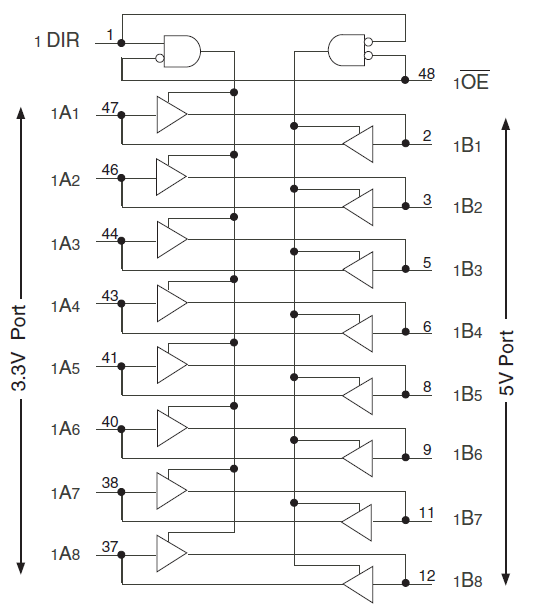

74FCT164245T - Block Diagram
74FCT164245T - Block Diagram
  • Bidirectional interface between 3.3V and 5V buses
  • Control inputs can be driven from either 3.3V or 5V circuits
  • ESD > 2000V per MIL-STD-883, Method 3015
  • > 200V using machine model (C = 200pF, R = 0)
  • VCC1 = 5V ±10%, VCC2 = 2.7V to 3.6V
  • High drive outputs (-32mA IOH, 64mA IOL) on 5V port
  • Power off disable on both ports permits "live insertion"
  • Typical VOLP (Output Ground Bounce) < 0.9V at VCC1 = 5V, VCC2 = 3.3V, TA = 25 °C
  • Available in 48-pin SSOP and TSSOP packages

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    74FCT164245TPAG
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		TSSOP 48 C Yes Tube 1 3.085 Get Samples,
    74FCT164245TPAG8
    circleActive
    memory
    view_in_ar
    Buy Now
    		TSSOP 48 C Yes Reel 1
    74FCT164245TPVG
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		SSOP 48 C Yes Tube 3 2.644 Get Samples,
    74FCT164245TPVG8
    circleActive
    memory
    view_in_ar
    Buy Now
    		SSOP 48 C Yes Reel 3 2.575
