Overview

The EZ-0011 is an LED lighting evaluation board that performs LED constant current control and PFC control without an LED constant current control IC or PFC control IC, by using the 78K0/IB2 microcontroller. An arbitrary number of LEDs can be connected, and independent dimming control of up to three channels with 60W total can be evaluated. AC power voltages of 100 to 240 V are supported, making it possible to evaluate operation on any power supply in the world.

EZ-0011

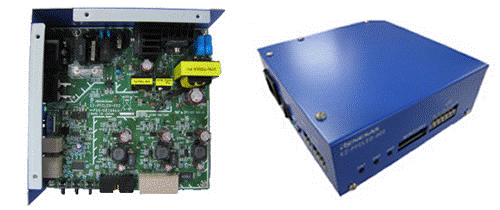

EZ-0011 LED Lighting Evaluation Board
EZ-0011
EZ-0011 LED Lighting Evaluation Board
  • LED constant current control and PFC control via on-chip microcontroller functions
  • Support for two different communication features: DALI communication and DMX512 communication
  • On-chip debugging using MINICUBE2
  • Support for Applilet EZ for HCD automated software generation tool

Documentation
Type Title Date
Manual - Development Tools
AppliletTM EZ for HCD Controller For Ver. 8.30 or Later Rev.12.00
PDF 1.35 MB
1 item

Design & Development

Software Downloads
Type Title Date
Software & Tools - Other
Applilet EZ for HCD Ver.8.3
Log in to Download ZIP 3.09 MB 日本語
1 item
