R0K5R8C34DK2HBR

Obsolete

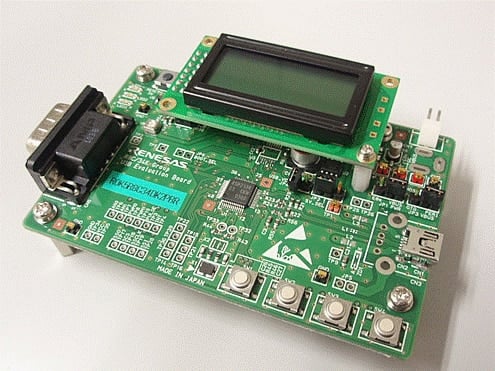

R8C/34K Group MCU Evaluation Board with USB A Receptacle and USB VBUS Control IC

Overview

The R0K5R8C34DK2HBR evaluation board is mounted with R8C/34K Group MCU, so it is suitable for software development and functional evaluation as USB Host device. This Evaluation Board can be used when you consider about R8C/3MK Group.

Specifications

Item Specification
MCU
  • R5F2134CKNFP(R8C/34KGroup), Flash ROM:128KB/Data ROM:4KB/RAM:10KB
USB
  • USB2.0 Function module (full-speed host function)
Debug Function
  • On-chip debug function with connection to E8a emulator
User I/F
  • RS-232C D-sub9 pin connector
  • Character-type LCD: features 8 characters x 2 lines( direct control from the general-purpose I/O ports of MCU)
  • 4 switches with A/D voltage detection
  • 3 LEDs (direct control through general I/O ports)
MCU port test pin
  • 17 pins (A protection circuit or a pull-up resistor are mounted
    for the pins on the board.)
Operating Voltage and Supply Source
  • main power supply voltage range： 5.0V(4.0V～5.5V) / 3.3V(3.0V～3.6V) *1
  • supply source: Stabilized power supply/E8a supply source
Accessory
  • Power supply cable (incl. 2P connector)
External Dimensions
  • 100mm x 65mm (not including protruding areas)

Notice

This product does not bundle with the power supply and the development tools. Prepare the following items before using this evaluation board.
- Power Supply 5V and 3V
- R8C Family C/C++ Compiler Package
- E8a emulator

Development support

Inquiries

If you require inquiry or the purchase for product please contact your Renesas sales engineer or Renesas distributor website.

R0K5R8C34DK2HBR

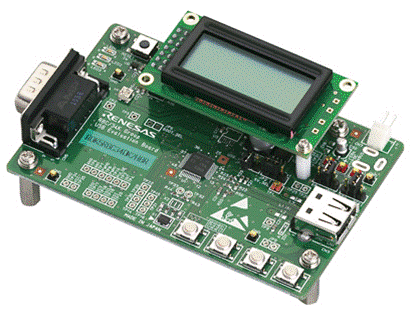

R8C/34K Group MCU Evaluation Board with USB A Receptacle and USB VBUS Control IC
R0K5R8C34DK2HBR
R8C/34K Group MCU Evaluation Board with USB A Receptacle and USB VBUS Control IC
  • This Evaluation Board has USB A receptacle and USB VBUS control IC, so it is available for USB Host device.
  • Mounted the connector for the E8a emulator manufactured by Renesas Electronics Corp.
  • This board has LCD module, LEDs, user switches as user I/F, so it is suitable for debug and functional evaluation.
  • MCU ports are extracted to the board surface as test pins, ｔhis board enables the connection of external devices.
  • The sample programs for USB function and each module of MCU are provided, you can immediately start software development and functional evaluation.
  • Attached the circuit diagram and the parts list, it is useful as a reference of circuit design and debug.

Documentation
Type Title Date
Application Note
Renesas USB MCU USB Peripheral Communications Device Class Driver (PCDC) using USB Basic Mini Firmware Rev.2.15
PDF 1.31 MB 日本語
Related Files:
Application Note
Renesas USB MCU USB Peripheral Mass Storage Class Driver (PMSC) using Basic Mini Firmware Rev.2.15
PDF 1.07 MB 日本語
Related Files:
Application Note
Renesas USB MCU Host Mass Storage Class Driver (HMSC) using USB Basic Mini Firmware (R01AN0624EJ0214)
PDF 808 KB 日本語
Related Files:
Application Note
Renesas USB MCU USB Host Communication Device Class Driver (HCDC) using Basic Mini Firmware (R01AN0643EJ0215) Rev.2.15
PDF 1.30 MB 日本語
Related Files:
Application Note
Renesas USB MCU USB Host Human Interface Device Class Driver (HHID) using Basic Mini Firmware Rev.2.15
PDF 1.36 MB 日本語
Related Files:
Application Note
Renesas USB MCU USB Host and Peripheral Basic Mini Firmware (R01AN0326EJ0215) Rev.2.15
PDF 2.08 MB 日本語
Related Files:
Application Note
Renesas USB MCU USB Peripheral Human Interface Devices Class Driver (PHID) using Basic Mini Firmware Rev.2.15
PDF 1.50 MB 日本語
Related Files:
Application Note
R8C/34K Group USB Host Evaluation Board R0K5R8C34DK2HBR Hardware Instruction Manual
PDF 592 KB 日本語
