Overview

Description

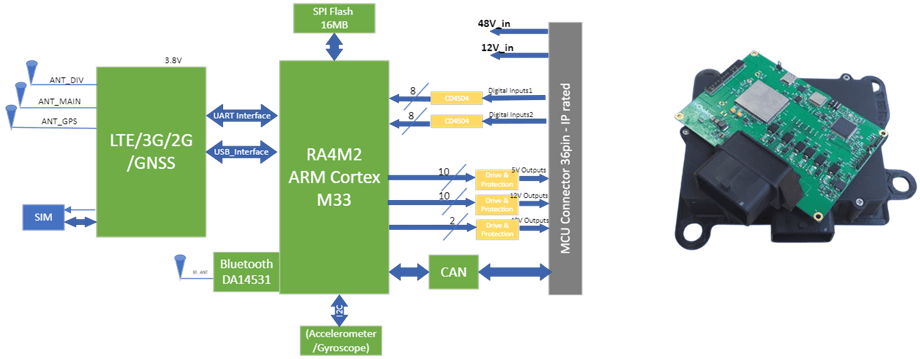

Chakra Vehicle Control Unit is a low-cost, high-performance, customizable industrial grade solution for two-wheel e-mobility applications. The unit can also be used for telematic applications. ODM support can be provided to end customers. Out-of-box support is now available for the Renesas RA4M2.


Features

  • Provides most efficient IoT solution to monitor the live location, battery state of charge (SOC) and alert notification for theft & accidents
    • Integrated with made in India LTE Cat 1 module
    • Supports GNSS and BLE 5.0
    • Free RTOS with OTA options
  • Monitors and controls EV I/Os for headlight, indicators, engine modes, battery, display, break status and sensors
    • 25 Digital I/Os and Isolated CAN 2.0 with various protections
    • Operating range of 5V to 15V
  • Robust protection for over-voltage, short circuit, over-current, reverse voltage, over temperature and tamper-proof

Comparison

Applications

Applications

  • Two wheelers
  • Telematics

Documentation

Type Title Date
Product Brief PDF 451 KB
1 item
