Overview

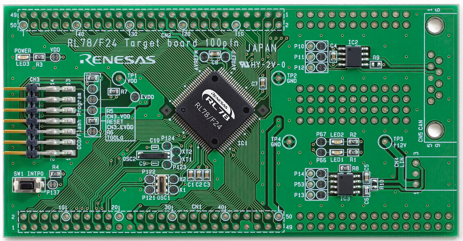

As a CPU board usable in connection with the on-chip debugging emulator E2, E2 Lite, this product achieves simple and easy evaluation of the target MCU.

RTK7F124FPC01000BJ
RTK7F124FPC01000BJ
  • Incorporates RL78/F24 (R7F124FPJ)
  • 4MHz resonator and 32.768kHz resonator are mounted
  • Equipped with universal area (2.54 mm pitch)
  • Supports both flash memory programming and on-chip debugging (using TOOL0 pin)
  • Highly extendable; peripheral board connectors are equipped with microcontroller pins

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
RL78/F24 Target Board RTK7F124FPC01000BJ User's Manual Rev.1.01
Log in to Download PDF 519 KB
Application Note
RL78/F24 CAN Driver and CAN Self-Test Rev.0.90
PDF 456 KB
Related Files:
2 items

Design & Development

Software & Tools
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
 Emulator Renesas
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator Renesas
2 items
