Overview
Description

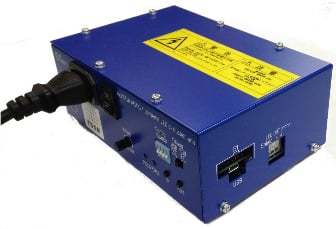

The RL78/I1A can control both power factor correction (PFC) and LED dimming with a single converter (flyback converter).
Features
- Application fields: Factories, homes, cities, lighting
- Applicable equipment: base lights, backlights, amusement equipment, downlights
- Main Features: LED lighting
- MCU/MPU families: RL78, 78K
- MCU/MPU groups: RL78/I1A, UPD78F073x
- A&P Categories: Transistors, optical semiconductors
- A&P Item Numbers: 2SD1615, PS9351L
- Board dimensions: 160 x 108 x 64 mm
- Release Date: August 2016
- Product page, User's manual
- *Refer to the user's manual for the parts list
- Power Supply: AC 100V to 240V (50Hz/60Hz)
- Power consumption: LED power max. 12W
LED Vf max. 60V, LED current max. 200mA - Accessories: Power cable, USB cable (Mini-B Type)
- Operating temperature: 0 °C to +45 °C
- Peripheral interface: USB, E1
- RoHS support: Cleared
- Partners: Yes
- Company name: Tessera Technology Co., Ltd.
- Inquiries;Tessera Technology Co., Ltd.
