Overview
Description

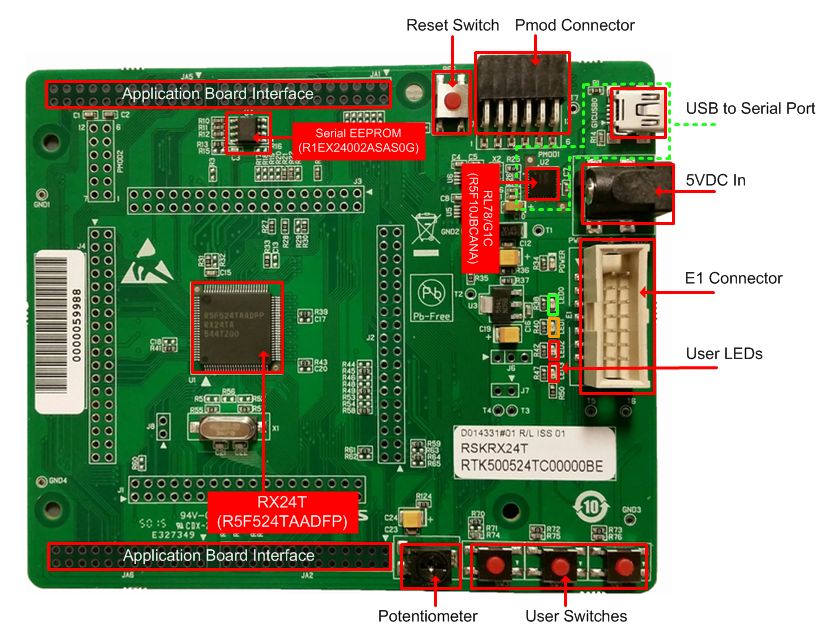

The Renesas Starter Kit for RX24T is the perfect starter kit for developers who are new to the RX24T. The kit includes an LCD display module, on-chip debugging emulator, and integrated development environment so you can start evaluating the RX24T immediately after opening the box. Please use this product to experience the performance and functions of the RX24T.
Information on the discontinuation of E1 emulator production and on its successor products
We have already discontinued production of the E1 emulator due to components of the product having reached their EOL (end of life, i.e. end of production). Please click on the following link to confirm the details and our successor products.
>> Tool News: [Notification] End of Life (EOL) Notice for E1 Emulator (PDF | English, 日本語)
The Renesas Starter Kit which includes the E1 emulator is for sale as long as stocks last. There are no changes to the included emulator.
After stock of the Kit with E1 emulator ends, the kit will not include the E1 emulator.
The IDE and flash programmer of the DVD-ROM do not support the E2 emulator and E2 emulator Lite. When you use either of the emulators, download the latest tool from the Renesas website.
>> [Notification] End of Life (EOL): Renesas Starter Kits with E1 Emulator (PDF | English, 日本語)
Features
- Such as IIC and SCI the communication function can be evaluated.
- Including sample codes (Sample programs will be available in Renesas Web site). Easy to understand coding technique.
- Required IBM-PC compatible PC (need USB interface, Processor 1GHz over), OS: Windows 8/7/Vista (other than the listed OS is not supported)
Applications
Applications
- Machine Tool, MFP Office Equipment, Refrigerator, Washing Machine, Air Conditioner, IH Cooking Heater, Vacuum Cleaner, Camera, Surveillance Camera, UPS, POS, Drone, Vending Machine
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QuickConnect Platform QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
|
Software and Hardware Development Tools | Renesas |
1 item
|
||
Sample Code

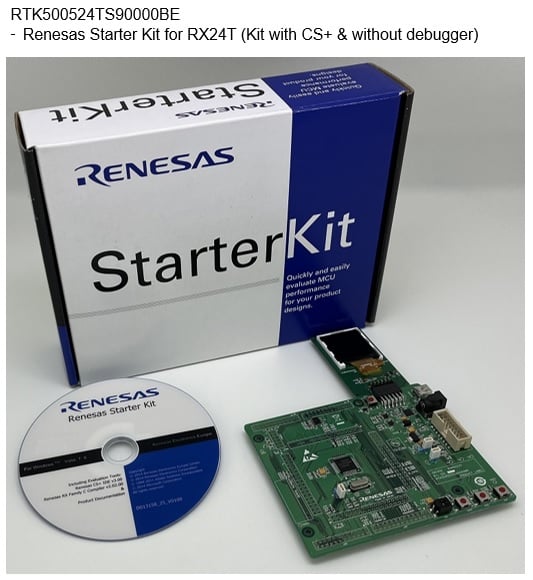

RTK500524TS90000BE Active
Buy Now
|
Renesas Starter Kit for RX24T (Kit with CS+) | None | ||
YRTK500524TS00000BE Active |
The Renesas Starter Kit for RX24T | US, EU, CN, BR, IN, KR, SG, TW | E2 Lite |
