Overview
Description

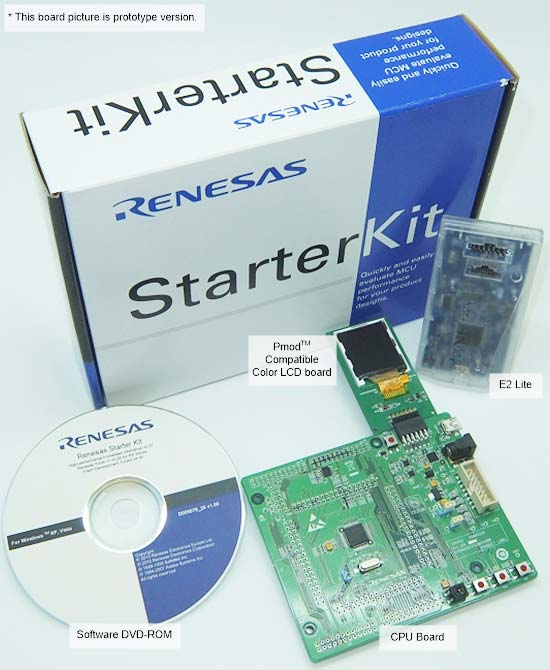

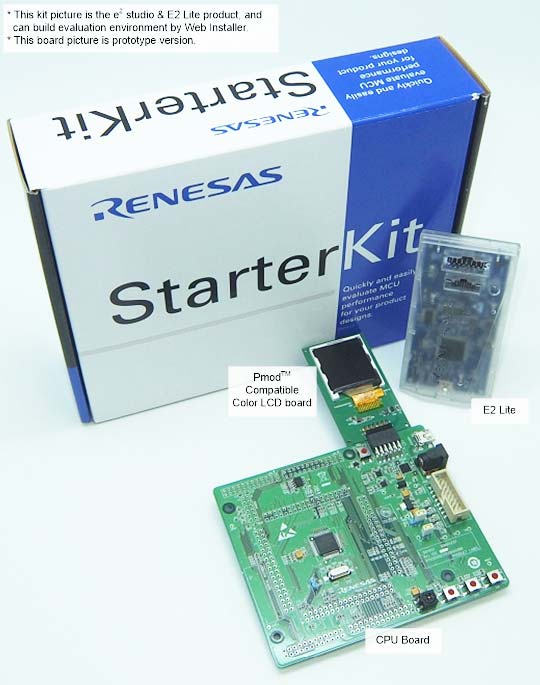

The Renesas Starter Kit for RX24U is the perfect starter kit for developers who are new to the RX24U. The kit includes an LCD display module, on-chip debugging emulator, and integrated development environment so you can start evaluating the RX24U immediately after opening the box. Please use this product to experience the performance and functions of the RX24U.
When supplying power from E2 Lite (E2 emulator Lite), the supply voltage is only 3.3V. Please use external power supply when using at other than 3.3V. E1 emulator is available.
Features
- Such as IIC and SCI the communication function can be evaluated.
- In addition, CAN can be evaluated.
- Sample programs will be available in Renesas Web site. Easy to understand coding technique.
- Required IBM-PC compatible PC need USB interface, Processor 1GHz over, OS: Windows 10/8/7/Vista other than the listed OS is not supported
Applications
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QuickConnect Platform QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
|
Software and Hardware Development Tools | Renesas |
1 item
|
||
Sample Code
Processing table
RTK500524US90000BE Active
Buy Now
|
Renesas Starter Kit for RX24U (Kit with CS+) | JP | None | |
RTK500524US00000BE Active
Buy Now
|
Renesas Starter Kit for RX24U (Kit with CS+) | E2 Lite | ||
YRTK500524US00000BE Active |
Renesas Starter Kit for RX24U | US, EU, CN, BR, IN, KR, SG, TW | E2 Lite |
Notice: some orderable products are not available in all regions. Please see the "Regional Availability" column for details.
