Overview

The Renesas Starter Kit for RX63T (64-pin) is intended as a user-friendly introductory and evaluation tool for the RX63T microcontroller. The board also provides a useful platform for evaluating the Renesas suite of development tools for coding and debugging, using High-performance Embedded Workshop.

The purpose of the board is to enable the user to evaluate the capabilities of the device and its peripherals by giving the user a simple platform on which code can be run only minutes from opening box. It can also prove an invaluable tool in development by providing a useful test platform for code already debugged using one of our more powerful emulation tools.

About the bundled emulator

We have already discontinued production of the E1 emulator due to components of the product having reached their EOL (end of life, i.e. end of production). Please click on the following link to confirm the details and our successor products.
[Notification] End of Life (EOL) Notice for E1 Emulator (PDF | English, 日本語)

The Renesas Starter Kit which includes the E1 emulator is for sale as long as stocks last. There are no changes to the included emulator.
After stock of the Kit with E1 emulator ends, the kit will not include the E1 emulator.
[Notification] End of Life (EOL): Renesas Starter Kits with E1 Emulator (PDF | English, 日本語)
The IDE and flash programmer of the DVD-ROM do not support the E2 emulator and E2 emulator Lite. When you use either of the emulators, download the latest tool from the Renesas website.

Renesas Starter Kit for RX63T (64-pin)

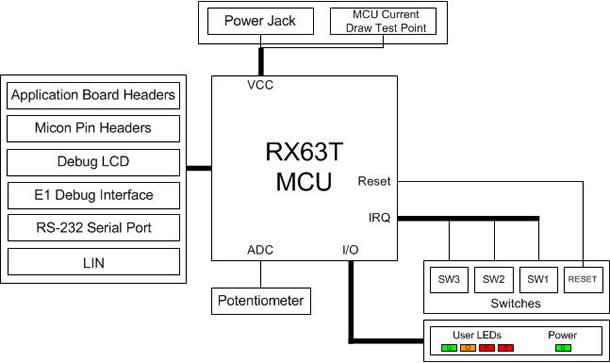

Renesas Starter Kit for RX63T (64-pin) Block Diagram

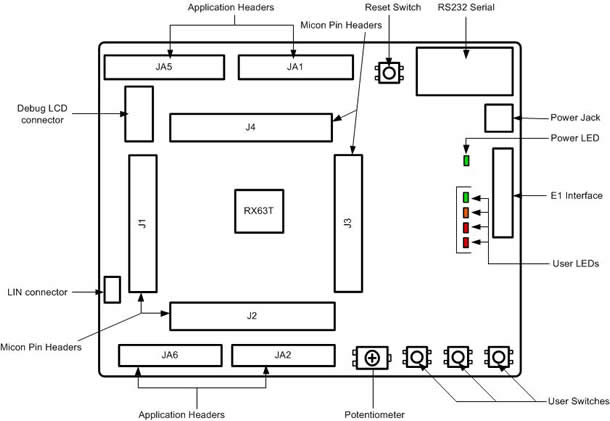

Renesas Starter Kit for RX63T (64-pin) Layout and Specification
Renesas Starter Kit for RX63T (64-pin)
Renesas Starter Kit for RX63T (64-pin) Block Diagram
Renesas Starter Kit for RX63T (64-pin) Layout and Specification

Applications

  • Air Conditioner, Refrigerator, Washing Machine, Solar Power System, UPS, Power Conditioner, AC Servo System, Inverter, Digital Power Supply, IH Cooking Heater, Measurement Equipment

Documentation

Design & Development

Software Downloads
Type Title Date
PCB Design Files
RSK RX63T-64pin Design Data
Log in to Download ZIP 596 KB 日本語
Software & Tools - Other
Renesas Starter Kit for RX63T(64-pin) Installer V.1.00
Log in to Download ZIP 293.95 MB
2 items

Product Options

    Processing table
    Description
    Debugger supplied
    Buy / Sample
    Part Number
    R0K50563TS900BE
    circleActive
    		 Renesas Starter Kit for RX63T (64-pin) None
