Overview
Description
CONNECT IT! ETHERNET RZ/N is the perfect solution kit for developers new to developing with the RZ/N1. The kit comes with not only an evaluation board but also a JTAG emulator and various sample software. By setting up the board according to the startup manual, you can evaluate Linux OS or Renesas R-IN engine (“R-IN engine”), or master and slave communications using EtherCAT or various other protocols In addition to three CPU boards (RZ/N1D, RZ/N1S and RZ/N1L), an expansion board that enables you to evaluate various peripheral functions is also available; you can choose which evaluation board to use according to your application. Experience the performance and function of the RZ/N1 through this CONNECT IT! ETHERNET RZ/N kit.
Features
- JTAG emulator
- IAR I-jet Lite (20-pin flat ribbon/USB cable)
- 2 USB cables
- Startup manuals
- Pin setting tool
- RZ/N Solution Kit DVD
- User's manual
- OS (Linux, ThreadX®(Evaluation version), HW-RTOS)
- Software PLC Codesys
- Protocol stacks
- EtherCAT®
- Modbus
- PROFINET®
- Ethernet/IP™
- etc.
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide | PDF 698 KB | |
| Quick Start Guide | PDF 1.23 MB | |
| Quick Start Guide | PDF 997 KB | |
| Quick Start Guide | PDF 1.05 MB | |
4 items
|
||
Design & Development
Processing table
YCONNECT-IT-RZN1S Active |
RZ/N1S CPU Board | |
YCONNECT-IT-RZN1-EB Active |

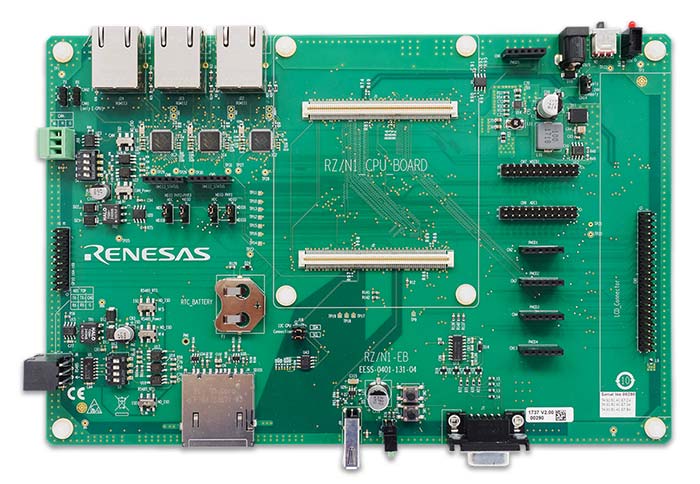

RZ/N1 Expansion Board | |
YCONNECT-IT-RZN1L Active |
RZ/N1L CPU Board | |
YCONNECT-IT-RZN1D Active |
RZ/N1D CPU Board |
