Overview

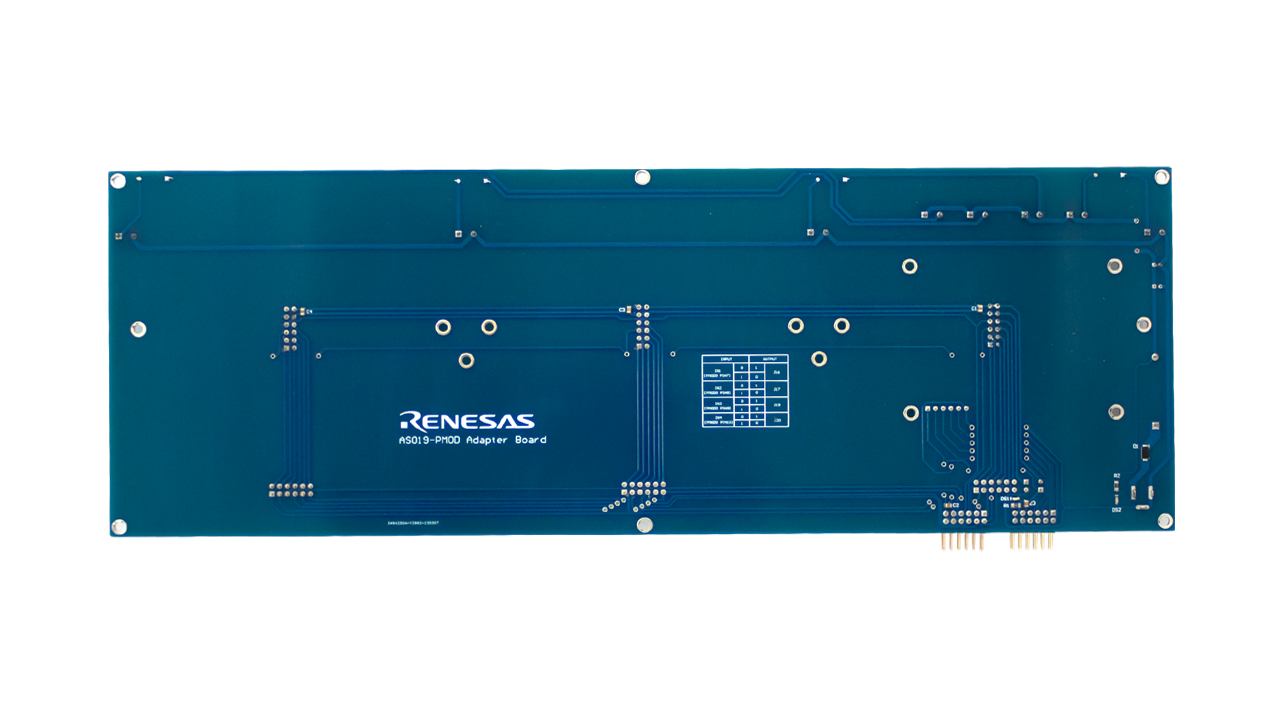

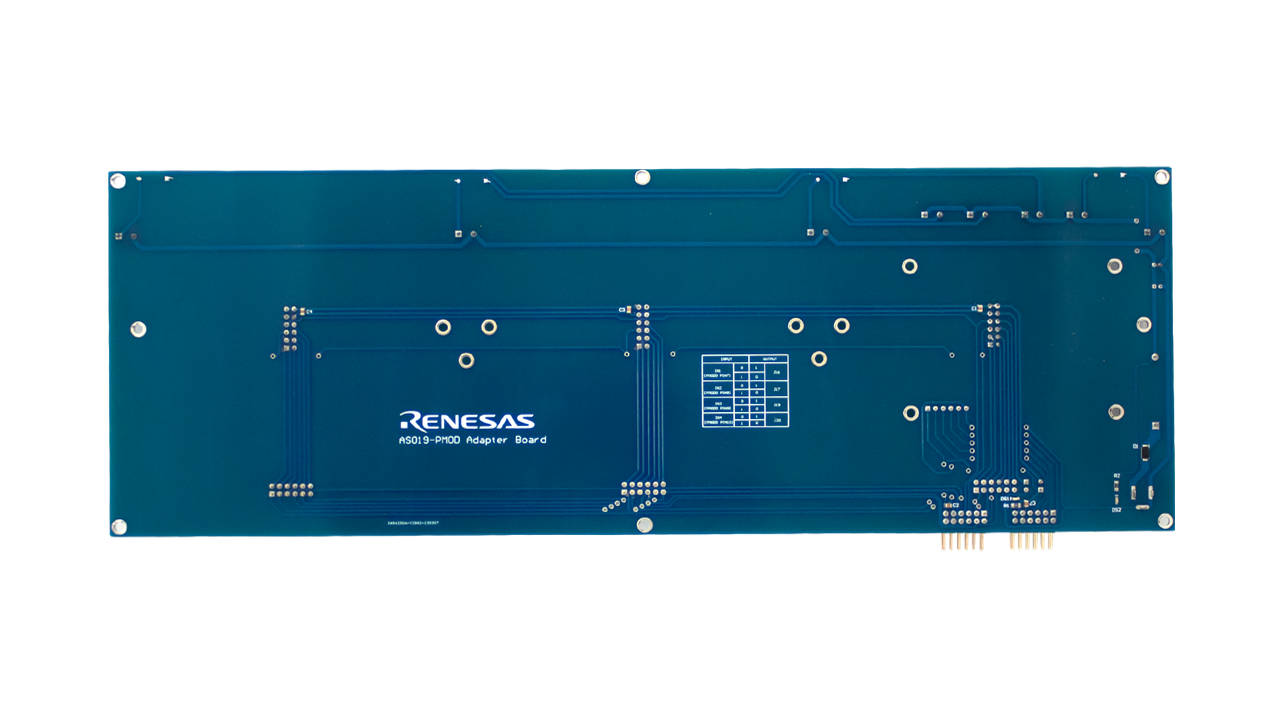

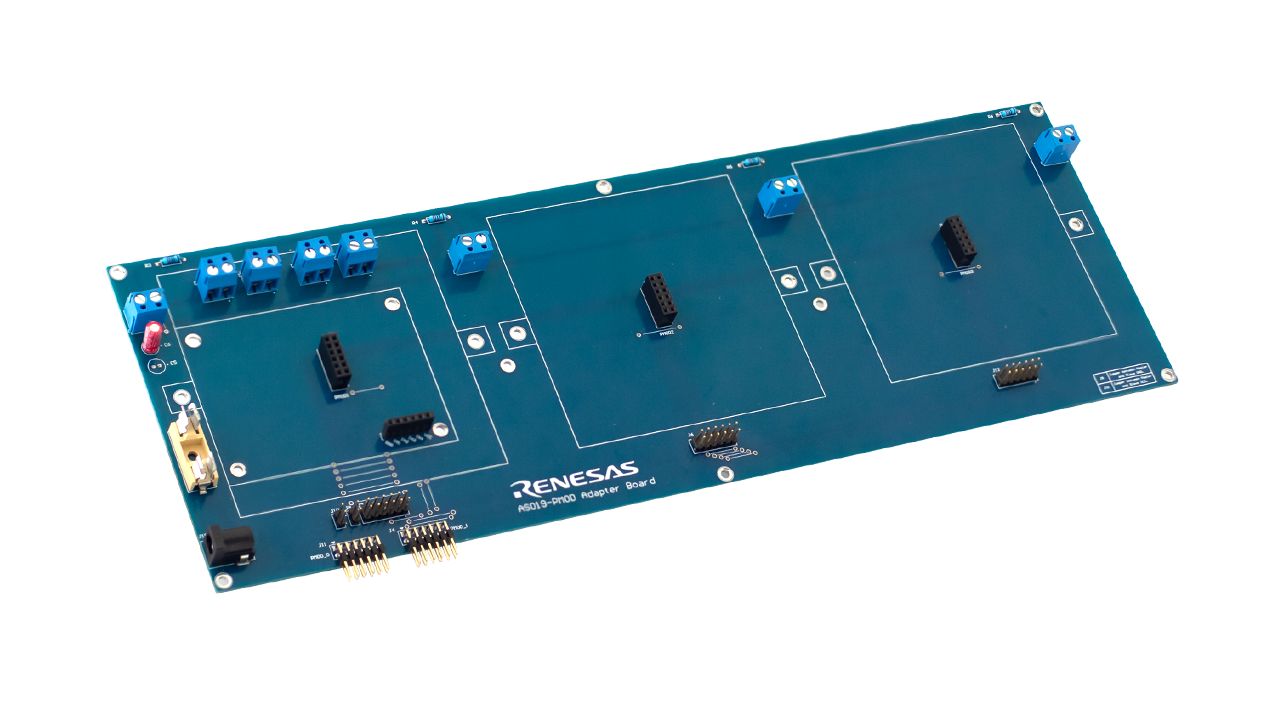

The AS019PMODEXP-POCZ Pmod™ expansion board comes with an RZ/G2L MPU platform which serves as the core of a home safety system, collecting air quality, gas, temperature, and humidity data via Pmod sensors. For detecting hazards, it controls relays for safety, triggers camera streaming to a local HDMI display, and allows system reset and overall control via a QT-based GUI system.

  • Supports Qt, a cross-platform framework for building GUIs and applications
  • Single PMIC chip meeting all the power requirements ensuring high performance, stability, and configurability
  • Supports real-time sensor data collection and local storage for immediate response, troubleshooting, and historical reference

Applications

  • HVACs
  • Smart lighting control
  • Smart home automation
  • Home security

Documentation

= Featured Documentation
Type Title Date
Manual - Hardware
AS019PMODEXP-POCZ Hardware User Manual
PDF 1.14 MB
Manual - Software
AS019PMODEXP-POCZ Software User Manual
PDF 3.17 MB
2 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
AS019PMODEXP-POCZ Design Files
Log in to Download ZIP 301 KB
1 item

Product Options

    Processing table
    Buy / Sample
    Part Number
    AS019PMODEXP-POCZ
