Overview
Description

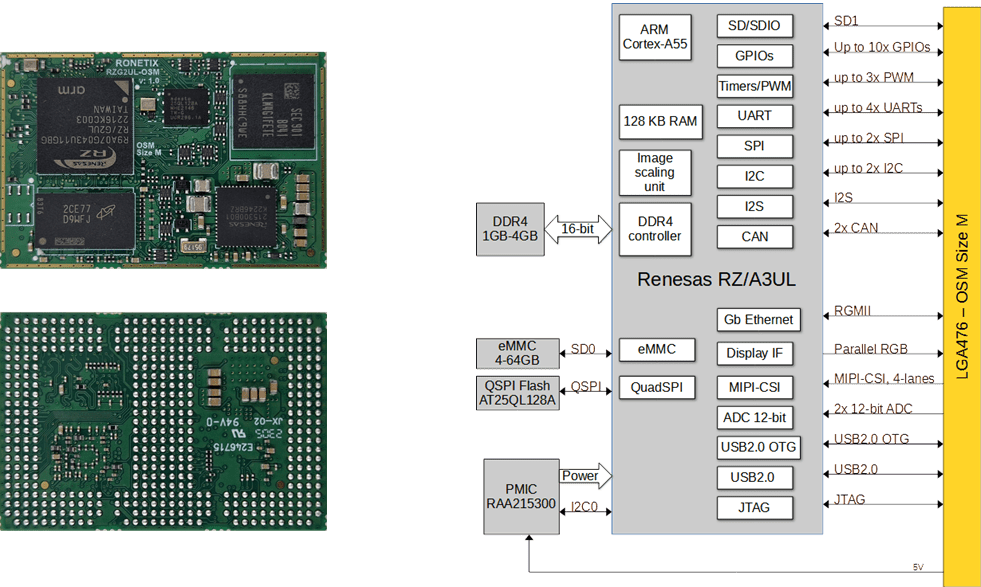

The RNX-RZA3UL-OSM is a solderable system-on-module (SoM) based on the Renesas RZ/A3UL 64-bit MPU. It is available in three system-on-chip (SoC) variants, in compliance with Open Standard Module™ specification OSM Size-M.
Features
- Compliant with Open Standard Module™ specification OSM Size-M, 45mm x 30mm
- Single-core Arm® Cortex®-A55 CPU, 1GHz
- RAM: 1GiB, DDR4
- eMMC: 4GiB (optional: up to 64GiB)
- QSPI NOR Flash (optional)
Comparison
Applications
Applications
- Industrial controls
- Smart home
- Home appliance
- Smart buildings
- Consumer electronics
