Overview
Description

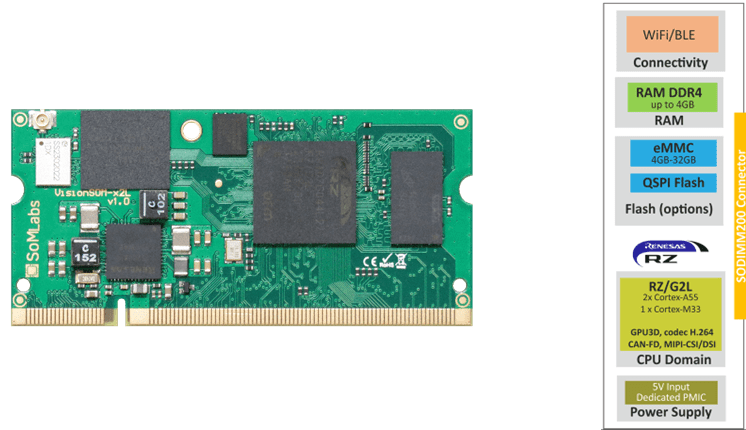

The VisionSOM-G2L is a small, energy-efficient system-on-module (SoM) equipped with a dual core, heterogeneous RZ/G2L MPU. The VisionSOM-G2L has high-speed communication interfaces such as dual USB 2.0 and Gigabit Ethernet, dual CAN FD, and many multimedia functions including a 3D graphics engine with Arm® Mali-G31 and video codec (H.264), making it ideal for applications such as industrial HMI and embedded devices with video capabilities.
Features
- Heterogeneous Arm® Cortex®-A55 dual core RZ/G2L at 1.2GHz + Cortex-M33 at 200MHz
- Equipped with eMMC and DDR4 memory
- Equipped with onboard Wi-Fi/Bluetooth®- Bluetooth Low Energy and antenna connector
- Edge connector features (dual Gigabit Ethernet, USB, MIPI-DSI/MIPI-CSI, CAN, UART/SPI/I2C serial communication, onboard ADC)
- Small SODIM200 footprint (67mm x 32mm)
- Carrier board and Linux BSP available
Comparison
Applications
Applications
- Industrial controls
- Medical devices
- Smart home
- Smart buildings
- Consumer electronics
- EV subsystems
