Overview
Description

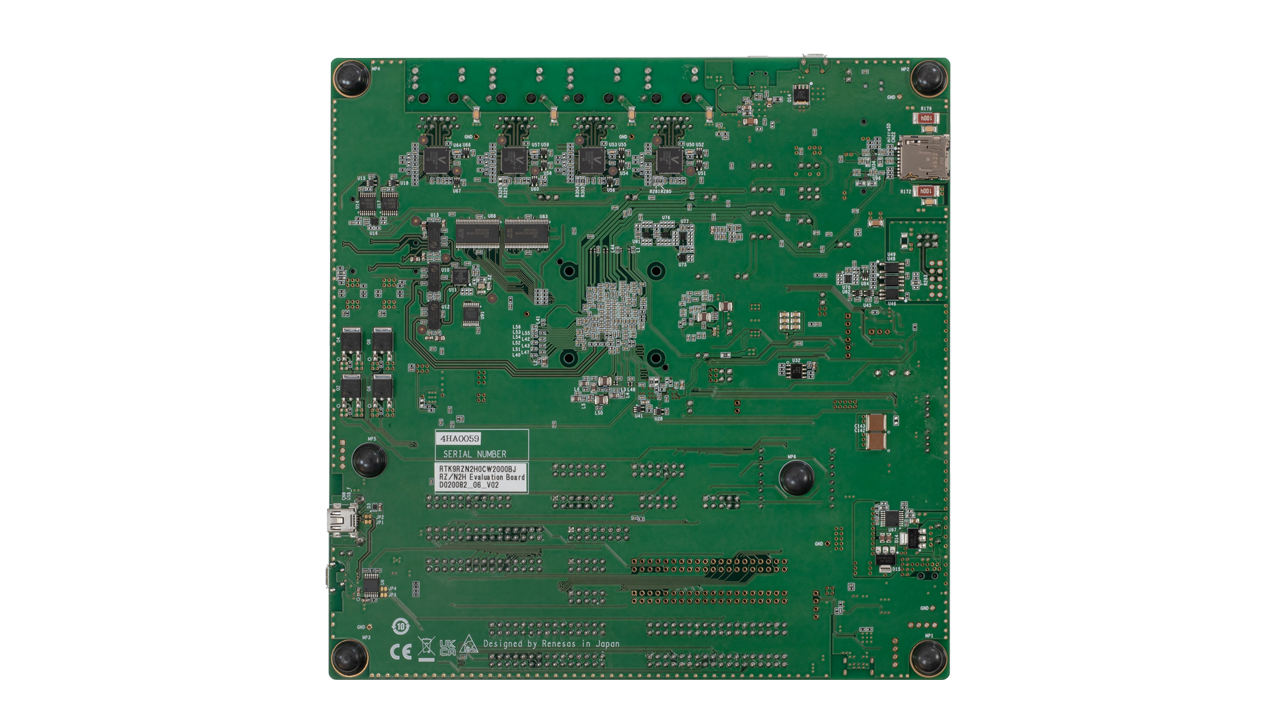

The Evaluation Board Kit for RZ/N2H is an evaluation and development kit for the RZ/N2H MPU. Since it has an on-board emulator, you can start evaluation by simply connecting the bundled cable with your PC. This board includes rich functional ICs such as Gigabit Ethernet PHY, non-volatile memory and LPDDR4 memory, and you can evaluate various functions of RZ/N2H without an extension board.
In addition, by expanding the inverter board, it is also possible to realize multi-axis motor control.
Features
- On-board RZ/N2H MPU 576-pin (R9A09G087M44GBG)
- Rich functional ICs such as Gigabit Ethernet PHY, non-volatile memory (QSPI flash, Octa flash, eMMC) and DDR are mounted, functions of target MPU can be fully evaluated
- Micro SD card slot, SD card slot and PCIe connector
- Generic interface such as Pmod™/Grove®/QWIIC®/mikroBUS™
- The pin header enables users to freely combine with the user's hardware system and evaluate RZ/N2H
- Emulator circuit is mounted, can start program debugging by simply connecting USB cables: three USB cables are bundled for power supply (Type C, 15V), on-board emulator connection (Micro B) and terminal debugging (Mini B).
- *Please prepare USB PD power supply (45W = 15V-3A or more) by yourself.
- Renesas IDE e² studio and FSP for RZ/N2 are available
