Overview
Description

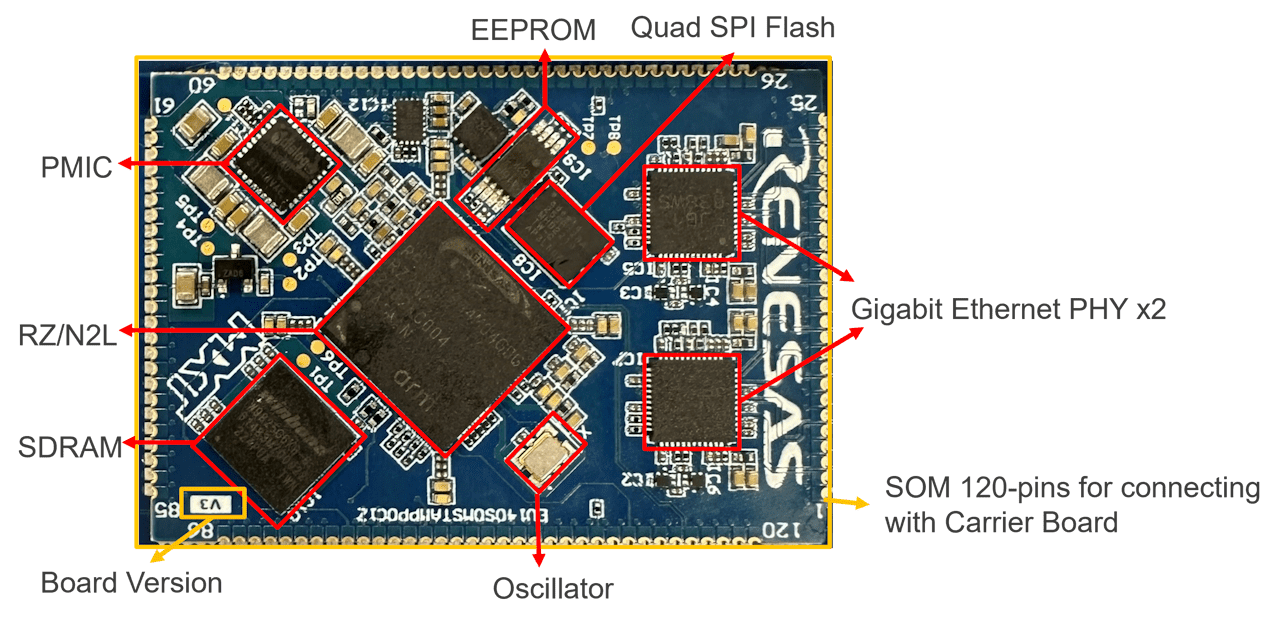

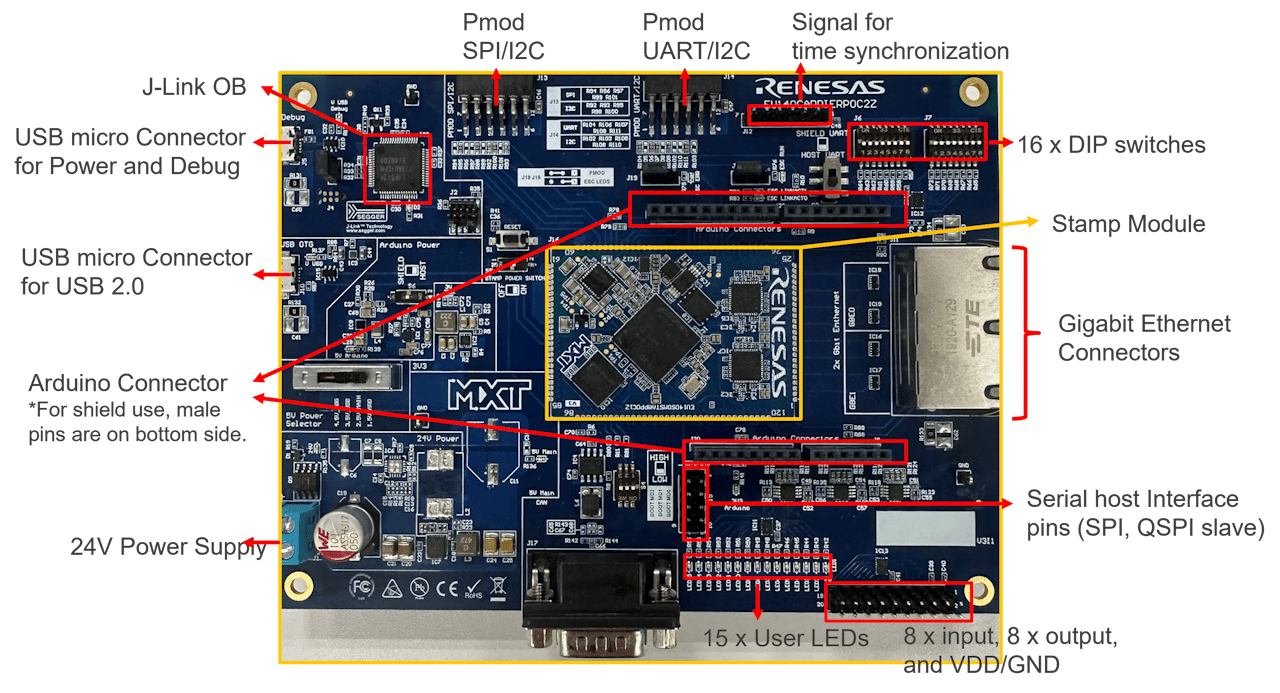

YCONNECT-IT-RZN2L is a compact development kit for evaluating applications using Industrial Ethernet communication with the RZ/N2L MPU. It contains two pre-assembled boards called "Stamp Module" and "Carrier Board".
The kit provides EtherCAT and EtherNet/IP sample software and will support Industrial Ethernet protocols such as PROFINET, Modbus TCP, and OPC UA in the future. With the Gigabit PHYs, it is well prepared to support real-time Ethernet communication based on TSN.
In addition, standard interfaces such as Pmod™ and Arduino and a host interface (QSPI slave) are also mounted, which can be connected easily to the application MCU board.
Features
- 2x Gigabit Industrial Ethernet connectors
- 2x PMOD connectors
- Type 3A and Type 6A modules can be mounted, like Renesas QuickConnect IoT sensors and connectivity (Bluetooth® Low Energy (LE), Wi-Fi)
- Arduino dual-use connector
- Host: Standard Arduino shields can be mounted
- Shield: Can be mounted on any Renesas MCU boards such as the EK-RA6M4
- Flexible power supply from either USB or 24V DC terminal or Arduino host board
- 9-pin connector for external debugger connection and Segger J-Link OB for debugging via USB
- Connectors for CAN, host interface, and Industrial Ethernet synchronous signal
Applications
Applications
- Remote I/O
- Sensor hub
- Industrial Ethernet unit/module
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 3.66 MB | |
| Application Note | PDF 1.47 MB | |
| Application Note | PDF 584 KB | |
| Application Note | PDF 4.11 MB | |
| Application Note | PDF 2.65 MB | |
| Application Note | PDF 2.89 MB | |
| Application Note | PDF 2.65 MB | |
| Application Note | PDF 1.50 MB | |
| Application Note | PDF 3.42 MB | |
9 items
|
||
Design & Development
Software & Tools
Sample Code
Lab on the Cloud
Lab on the Cloud
This RZ/N2L, 2 Gigabit Ethernet PHY implementation can be seen through pings and LED blinking which show the transmission and Gigabit Ethernet connection.
YCONNECT-IT-RZN2L Active
Buy Now
|
