Overview
Description

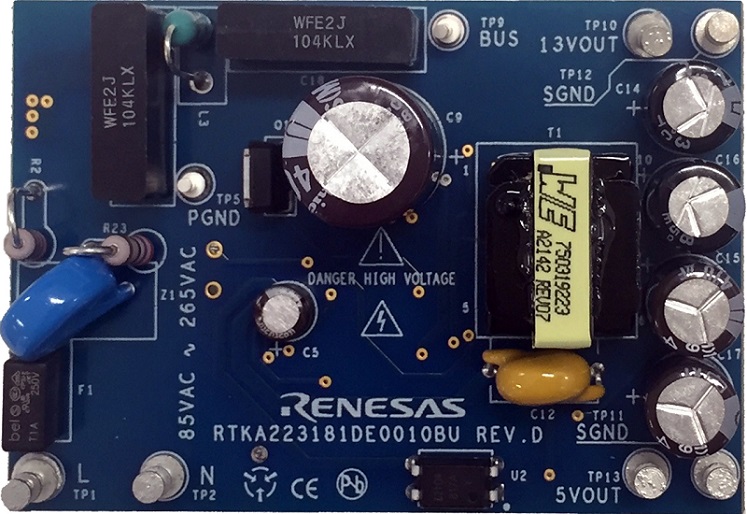

The RTKA223181DE0010BU dual output 6W universal input Flyback evaluation board, featuring the RAA223181 900V regulator, is designed to demonstrate a low-cost high performance isolated AC/DC solution from a universal input of 85Vac to 265Vac, to 13V and 5V outputs for Smart Meter applications.
Features
- Fault tolerant input range up to 450Vac
- Transient heavy load support
- Single bus capacitor design for input up to 450Vac
- Low BOM cost design
- EMI compliance for EN55022/CISPR22
- Surge test compliance to IEC61000-4-5 up to 4kV
Applications
Applications
- Smart Meter
- Large appliances
- Industry control
