Overview

The iW636 is a Rapid Charge™ secondary-side controller for USB interface supporting Qualcomm® Quick Charge™ 3.0 (QC3.0) technology and secondary-to-primary communication protocol, that works with the iW1782 or iW1780H primary-side AC/DC digital controller to enable rapid charging of QC3.0/QC2.0-enabled mobile devices.

The iW636 integrates an optocoupler driver that relays commands to the iW1782 or iW1780H AC/DC controllers. These chipsets provide efficiency as high as 90% to enable the higher power density needed for small form factor fast charging adapters. It also uses Renesas' SmartDefender™ smart hiccup technology to help address soft shorts in cables and connectors.

Qualcomm Quick Charge is a product of Qualcomm Technologies, Inc.

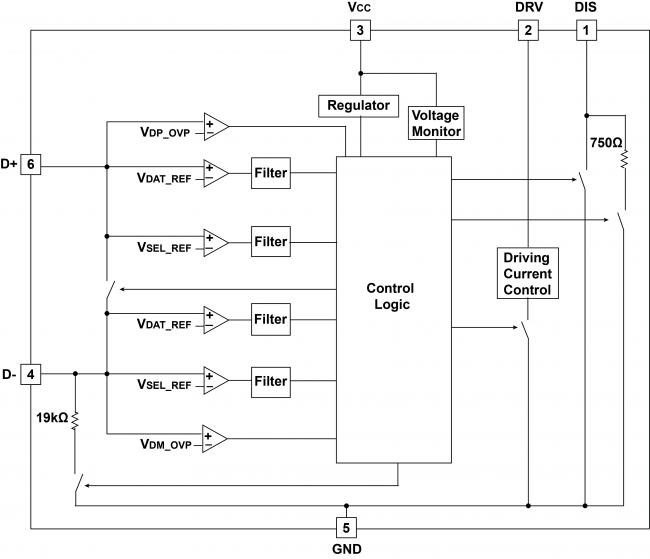

iW636 Functional Block Diagram

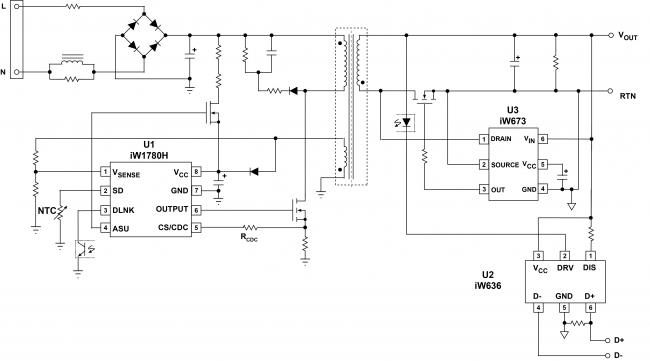

iW636 Typical Applications Diagram
iW636 Functional Block Diagram
iW636 Typical Applications Diagram
  • Supports Qualcomm Quick Charge 3.0 technology High Voltage Dedicated Charging Port (HVDCP) to provide VBUS from 3.6V to 12V in 200mV increments
  • Double-layer cable protection:
    • Secondary side (iW636): Proprietary D+/D- overvoltage protection (OVP) addresses VBUS D+/Dsoft shorts
    • Primary side (iW1782 or iW1780H): SmartDefender™ smart hiccup technology reduces average output power at fault conditions without latch
  • Proprietary secondary-to-primary digital communication eliminates discrete decoders in the primary side and simplifies system designs
  • Single optocoupler transmits all information for rapid charge: Output voltage requests, output current limits, output voltage undershoot (UV), overvoltage protection (OVP), and fault and reset signals
  • Adaptive OVP/UV detection for most VBUS levels
  • Backward compatible with QC2.0 and USB Battery Charging Specification Revision 1.2 (USB BC1.2)
  • Pin-to-pin compatible with iW626
  • Programmable active fast discharge from a high voltage VBUS level to 5V at mobile device unplug or upon request with built-in switch or external switch
  • Normally OFF state with <150µA cut-off current during 5V steady-state operation to achieve <10mW overall system no-load power consumption
  • Wide operating voltage range from 3V to 16V
  • Built-in optocoupler LED driver with a minimum driving current of 2mA

Applications

  • Rapid charging AC/DC adapters for smart phones, tablets and other portable devices

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Buy / Sample
    Part Number
    IW636-00
    circleActive
    memory
    view_in_ar
    		SOT23-6L Tape & Reel 1
    IW636-02
    circleActive
    memory
    view_in_ar
    		SOT23-6L Tape & Reel 1
    iW636-04
    circleActive
    memory
    view_in_ar
    		SOT23-6L Tape & Reel 1
    iW636-05
    circleActive
    memory
    view_in_ar
    		SOT23-6L Tape & Reel 1
    iW636-06
    circleActive
    memory
    view_in_ar
    		SOT23-6L Tape & Reel 1
    IW636-07
    circleActive
    memory
    view_in_ar
    		SOT23-6L Tape & Reel 1
    iW636-08
    circleActive
    memory
    view_in_ar
    		SOT23-6L Tape & Reel 1
    IW636-21
    circleActive
    memory
    view_in_ar
    		SOT23-6L Tape & Reel 1
