Synchronous Boost Converter with 1.3A Switch Evaluation Board
The ISL9113ERAZ-EVZ (WLCSP) evaluation board is used to evaluate the ISL9113 low input voltage and high-efficiency synchronous boost converter. The ISL9113 provides a...
Overview
Description

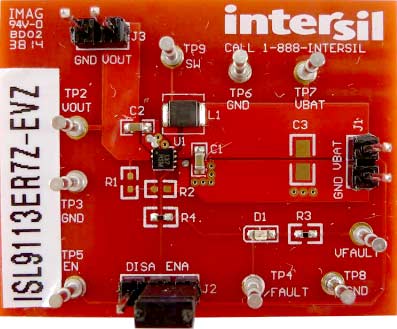

The ISL9113ER7Z-EVZ evaluation board is used to evaluate the ISL9113 low input voltage and high-efficiency synchronous boost converter. The ISL9113 provides a power supply solution for devices powered by 3-cell alkaline, NiCd, NiMH, or 1-cell Li-ion/Li-polymer batteries. The device uses Renesas' proprietary boost algorithm to maintain voltage regulation when the input voltage is very low.
Features
- Small, compact design
- Jumper selectable EN (enabled/disabled)
- On-board LED fault indication
- Connectors, test points and jumpers for easy probing
Applications
Applications
- Products including portable HDMI and USB On-the-Go (USB-OTG)
- Smartphones
- Tablet and mobile internet devices
