Overview

The ISL6271AEVAL1 evaluation board provides a means to explore and validate the functional capabilities of the ISL6271A XScale® regulator. The ISL6271A is a power management integrated circuit (PMIC) designed to provide the low-voltage requirements for the Intel® Bulverde XScale processor.

The ISL6271A is a versatile PMIC designed for the XScale type of processors. The device integrates three regulators, two fault indicators and an I2C bus for communication with a host microprocessor. Two of the three regulators function as low power, low drop out regulators, designed to power SRAM and phase-lock loop circuitry internal to the XScale processor. The third regulator uses a proprietary switch-mode topology to power the processor core and facilitate dynamic voltage management (DVM), as defined by Intel.

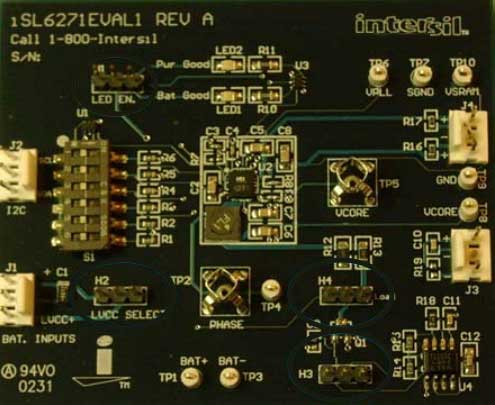

ISL6271AEVAL1 Integrated XScale Regulator Eval Board
ISL6271AEVAL1 Integrated XScale Regulator Eval Board
  • Intuitive layout flow with strapping options
  • Left-to-right flow of input-to-output
  • LED indicator functions
  • Transient load-generator
  • Cabling is provided
  • Core regulator output controlled by an externally connected I2C interface module (provided) or on-board static VID switches

Applications

  • PDAs
  • Cell phones
  • Tablet devices
  • Embedded processors

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
ISL6271AEVAL1 User Guide
PDF 1.07 MB
Datasheet
ISL6271A Datasheet
PDF 1012 KB
2 items

Design & Development

Software Downloads
Type Title Date
Library
ISL6271A Design Software Installer
ZIP 1.13 MB
PCB Design Files
ISL6271AEVAL1 Gerber Files
ZIP 46 KB
2 items

Product Options

    Processing table
    Buy / Sample
    Part Number
    ISL6271AEVAL1
    circleActive
    Samples Available
    		 Get Samples,
