Overview

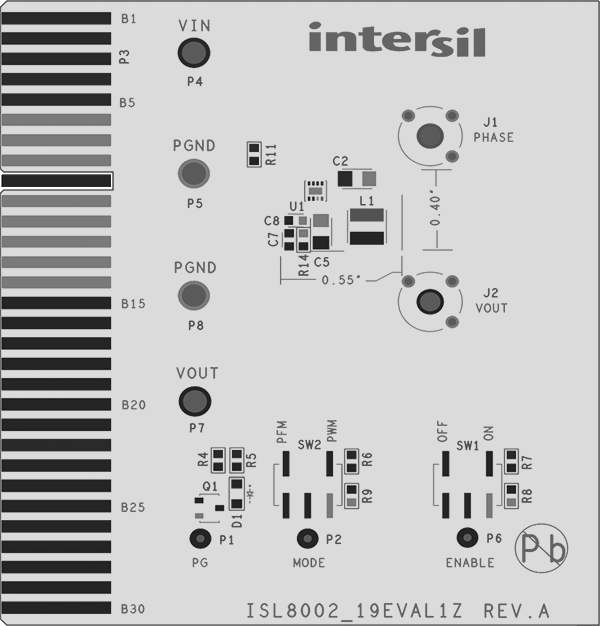

The ISL8002EVAL1Z evaluation kit is intended for use by individuals with requirements for point-of-load applications sourcing from 2.7V to 5.5V. The ISL8002EVAL1Z evaluation board is used to demonstrate the performance of the ISL8002 low quiescent current, high-efficiency, synchronous buck regulator.

The ISL8002 is offered in a 2mm x 2mm 8 Ld μTDFN package with 1mm maximum height. The complete area that the converter occupies can be as small as 0.10in2.

ISL8002xEVAL1Z,ISL80019xEVAL1Z Sync Buck Regulator Eval Boards
ISL8002xEVAL1Z,ISL80019xEVAL1Z Sync Buck Regulator Eval Boards
  • High-efficiency synchronous buck regulator with up to 95% efficiency
  • 0.8% reference accuracy over-temperature/load/line
  • Start-up with pre-biased output
  • Internal soft-start - 1ms
  • Soft-stop output discharge during disable
  • 1MHz, 2MHz default frequency
  • Negative OC protection

Applications

  • General purpose point-of-load DC/DC
  • Set-top boxes and cable modems
  • FPGA power
  • DVD, HDD drives, LCD panels, TVs

Documentation

= Featured Documentation
Type Title Date
Guide
ISL8002-19EVAL1Z User Guide
PDF 612 KB
Datasheet
ISL8002, ISL8002A, ISL80019, ISL80019A Datasheet
PDF 1.87 MB 日本語
2 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
ISL8002xEVAL1Z, ISL80019xEVAL1Z Design Files
ZIP 281 KB
1 item
