Overview

The ISL8013AEVAL2Z evaluation board is intended for use by individuals with requirements for point-of-load (POL) applications sourcing from 2.7V to 5.5V. This evaluation board demonstrates the performance of the ISL8013A low quiescent current mode converter.

The ISL8013A is a high-efficiency, monolithic, synchronous step-down DC/DC converter that can deliver up to 3A of continuous output current from a 2.8V to 5.5V input supply. It uses a current control architecture to deliver very low duty cycle operation at high frequency with fast transient response and excellent loop stability.

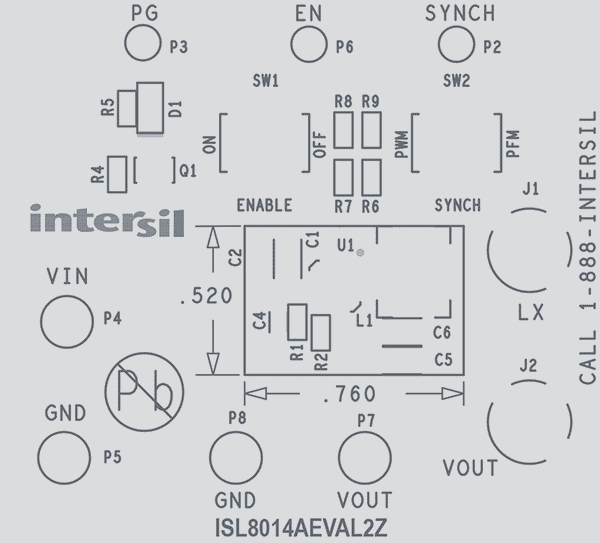

ISL8014AEVAL2Z Buck Regulator Eval Board
ISL8014AEVAL2Z Buck Regulator Eval Board
  • High-efficiency synchronous buck regulator with up to 95% efficiency
  • Power-good (PG) output with 1ms delay
  • 2.7V to 5.5V supply voltage
  • 3% output accuracy over-temperature/load/line
  • 3A guaranteed output current
  • Start-up with pre-biased output
  • Internal digital soft-start - 1ms
  • Soft-stop output discharge during disabled
  • 35µA quiescent supply current in PFM mode
  • Selectable forced PWM mode and PFM mode
  • External synchronization up to 4MHz
  • Less than 1µA logic controlled shutdown current
  • 100% maximum duty cycle for lowest dropout
  • Internal current mode compensation
  • Peak current limiting and hiccup mode short circuit protection
  • Over-temperature protection

Applications

  • DC/DC POL modules
  • µC/µP, FPGA and DSP power
  • Plug-in DC/DC modules for routers and switchers
  • Portable instruments
  • Test and measurement systems
  • Li-ion battery powered devices
  • Small form factor (SFF) modules
  • Barcode readers
