Overview

The ISL8016 is a high efficiency, monolithic, synchronous step-down DC/DC converter that can deliver up to 6A continuous output current from a 2. 7V to 5. 5V input supply. The output voltage is adjustable from 0. 6V to VIN. With an adjustable current limit, reverse current protection, pre-bias start and over temperature protection the ISL8016 offers a highly robust power solution. It uses current control architecture to deliver fast transient response and excellent loop stability. The ISL8016 integrates a pair of low ON-resistance P-Channel and N-Channel internal MOSFETs to maximize efficiency and minimize external component count. 100% duty-cycle operation allows less than 200mV dropout at 6A output current. Adjustable frequency and synchronization allow the ISL8016 to be used in applications requiring low noise. Paralleling capability with phase interleaving allows the IC to support >6A output current while offering reduced input and output noise. The ISL8016 can be configured for discontinuous or forced continuous operation at light load. Forced continuous operation reduces noise and RF interference while discontinuous mode provides high efficiency by reducing switching losses at light loads. The ISL8016 is offered in a space saving 20 Ld 3x4 QFN lead free package with exposed pad lead frames for excellent thermal performance. The complete converter occupies less than 0. 15in2 area. Various fixed output voltages are available upon request.

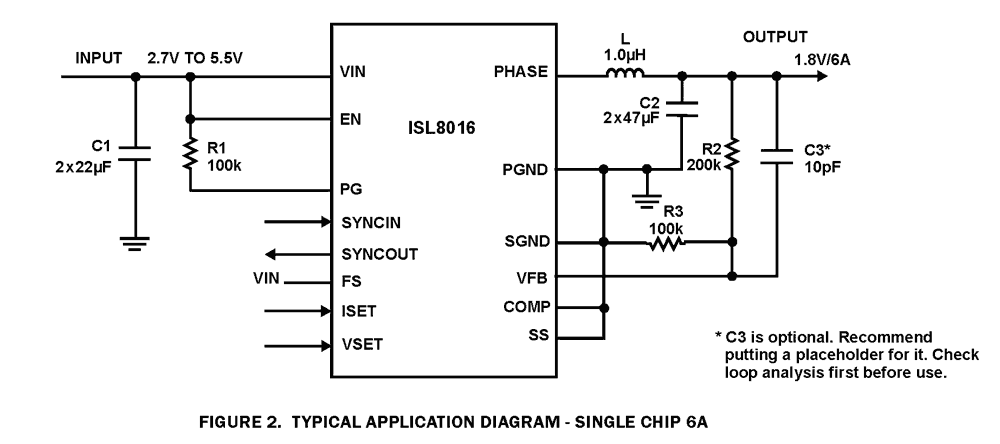

ISL8016 Functional Diagram
ISL8016 Functional Diagram
  • High Efficiency Synchronous Buck Regulator with up to 97% Efficiency
  • 1% Reference Accuracy Over-Temperature/Load/Line
  • Fixed Output Voltage Option
  • ±10% Output Voltage Margining
  • Adjustable Current Limit
  • Current Sharing Capable
  • Start-up with Pre-Biased Output
  • Internal Soft-Start - 1ms or Adjustable, Internal/External Compensation
  • Soft-Stop Output Discharge During Disabled
  • Adjustable Frequency from 500kHz to 4MHz - Default at 1MHz
  • External Synchronization up to 4MHz - Master to Slave Phase Shifting Capability
  • Peak current limiting, Hiccup Mode Short Circuit Protection and Over-Temperature Protection

Applications

  • DC/DC POL Modules
  • µC/µP, FPGA and DSP Power
  • Plug-in DC/DC Modules for Routers and Switchers
  • Portable Instruments
  • Test and Measurement Systems
  • Li-ion Battery Powered Devices

Documentation

Design & Development

Software & Tools
iSim:PE Offline Simulation Tool
iSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.
Downloads
ISL8016 12A iSim:PE ModelISL8016 6A iSim:PE Model
 Simulator Renesas
1 item
ISL8016CIR1EVAL1Z Buck Regulator Evaluation Board

ISL8016CIR1EVAL1Z

Evaluation
Learn More

6A Low Quiescent Current High-Efficiency Synchronous Buck Regulator Evaluation Board

The ISL8016CIR1EVAL1Z evaluation board is intended for use by individuals with requirements for point-of-load (POL) applications sourcing from 2.7V to 5.8V. The...

Featured Documents:
ISL8016CIR1EVAL1Z User Guide

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    ISL8016IR12Z
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    		 QFN Tube 3 Get Samples,
    ISL8016IR12Z-T
    circleActive
    memory
    spa
    view_in_ar
    		QFN Reel 3
    ISL8016IR15Z
    circleActive
    memory
    spa
    view_in_ar
    		QFN Tube 3
    ISL8016IR15Z-T
    circleActive
    memory
    spa
    view_in_ar
    		QFN Reel 3
    ISL8016IR18Z
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    Buy Now
    		QFN Tube 3 Get Samples,
    ISL8016IR18Z-T
    circleActive
    memory
    spa
    view_in_ar
    		QFN Reel 3
    ISL8016IR25Z
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    		 QFN Tube 3 Get Samples,
    ISL8016IR25Z-T
    circleActive
    memory
    spa
    view_in_ar
    		QFN Reel 3
    ISL8016IR33Z
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    		 QFN Tube 3 Get Samples,
    ISL8016IR33Z-T
    circleActive
    memory
    spa
    view_in_ar
    		QFN Reel 3
    ISL8016IRAJZ
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    Buy Now
    		QFN Tube 3 2.428 Get Samples,
    ISL8016IRAJZ-T
    circleActive
    memory
    spa
    view_in_ar
    Samples Available
    Buy Now
    		QFN Reel 3 2.373 Get Samples,
