Overview

The ISL80101EVAL2Z provides a simple platform for evaluating the performance of the ISL80101 1A LDO for industrial and infrastructure applications. The board comes with the adjustable output version of the IC. Jumpers are provided to easily set popular output voltages. Fixed output versions are sampled in the accompanying kit.

The ISL80101-ADJ is the recommended replacement for the ISL80101.

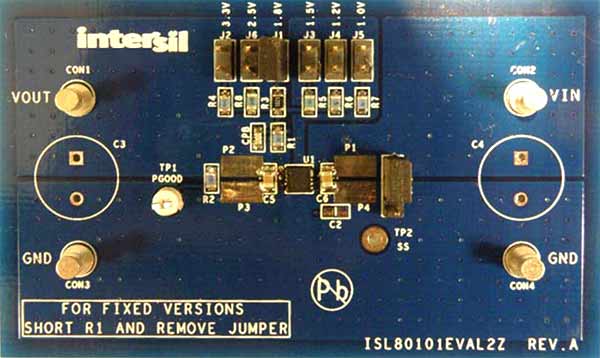

ISL80101EVAL2Z 1A LDO Eval Board
ISL80101EVAL2Z 1A LDO Eval Board
  • Very fast load transient response
  • ±1.8% guaranteed VOUT accuracy over line, load and temperature
  • 1A output current rating
  • Adjustable inrush current limiting
  • Power-good (PGOOD) output feature
  • Short-circuit and over-temperature protection

Applications

  • Servers
  • Telecommunications and networking
  • Medical equipment
  • Instrumentation systems
  • Routers and switchers

Documentation

= Featured Documentation
Type Title Date
Manual - Development Tools
ISL80101EVAL2Z User Guide
PDF 701 KB
Datasheet
ISL80101-ADJ Datasheet
PDF 798 KB
2 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
ISL80101EVAL2Z Design Files
ZIP 148 KB
1 item

Product Options

    Processing table
    Buy / Sample
    Part Number
    ISL80101EVAL2Z
    circleActive
    Samples Available
    Buy Now
    		Get Samples,
