Overview

The P9145 is a programmable, multi-channel power management IC (PMIC) designed for the Intel® Baytrail Atom™ SoC to meet high-performance requirements and provide high-feature integration to minimize system board area and BOM cost. The PMIC includes subsystems for voltage regulation, power sequencing management, A/D conversion, GPIOs, PWMs, and others. The P9145 is factory-programmable for application-specific sequencing and output voltage requirements. The device supports the serial voltage ID (SVID) interface for VCC, VNN, and VDDQ (optional). The output current capability of the P9145 solution can be increased by adding Renesas intelligent, scalable, distributed power units (DPU), P9147 and P9148.

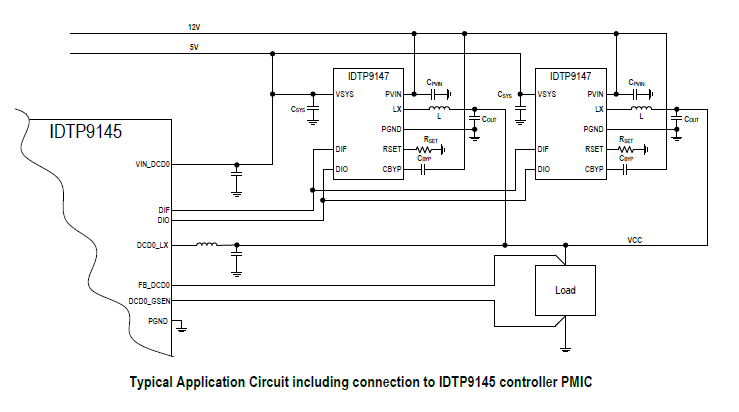

IDTP9145-IDTP9147 Application Diagram
IDTP9145-IDTP9147 Application Diagram
  • 4.5V to 5.25V input voltage range
  • 7 programmable step-down converters - 5 with integrated FETs
  • Supports P9147 and P9148 distributed power units (DPU)
  • Seven general-purpose LDOs including Source Sink VTT
  • SVID interface supporting IMVP7 protocol
  • 10-bit ADC
  • 16 programmable GPIOs and 12 programmable Enable outputs
  • Host interface and system power management functions
  • High-speed I2C interface
  • Factory programmable default power sequence and settings
  • Industrial temperature range of -40 °C to +85 °C
  • 100-lead 8mm x 8mm dual-row QFN (Type4-PCB) HD package option (NQG100)
  • 100-lead 9mm x 9mm dual-row HLA (Type3-PCB) LD package option (NAG100)

Documentation

= Featured Documentation
Type Title Date
Datasheet
IDTP9145 Advanced Datasheet
Log in to Download PDF 3.04 MB
End Of Life Notice
PDN# : PM-20-01 End-of-Life (EOL) Process on Select Parts
PDF 155 KB
Product Change Notice
PCN# : TB1601-01 Add Sigurd, Taiwan as Alternate Test and Backend Location
PDF 881 KB
Application Note
IDTP914x Layout Guide
Log in to Download PDF 428 KB 简体中文
Overview
IDTP9145 Configuration Addendum
Log in to Download PDF 408 KB
Datasheet - Short-form
IDTP9145 Register Map
Log in to Download PDF 5.24 MB
6 items

Design & Development

Software Downloads
Type Title Date
Software & Tools - Evaluation Software
IDTP9145-I0NAG-EVAL CD Content
Log in to Download ZIP 7.07 MB
Software & Tools - Evaluation Software
IDTP9145-I0NQG-EVAL CD Content
Log in to Download ZIP 10.54 MB
2 items
P9145I0NAG Evaluation Board for P9145 & P9148 - side view

IDTP9145-EVAL

Evaluation
Learn More

IDTP9145, P9147, P9148 Programmable Multi-Channel PMIC Solution for Intel Baytrail Atom™ Evaluation Board

The IDTP9145-I0NQG-EVAL and IDTP9145-I0NAG-EVAL are evaluation boards for the IDTP9145 - Programmable Triple Channel PMIC and the IDTP9147 / P9148 distributed power...
Featured Documents:
P9145-I0NAG-EVAL Schematic
USB-BridgeV2 Evaluation Board

USB-BRIDGEV2-EVAL

Evaluation
Learn More

USB to I2C Dongle

The USB to I2C dongle allows customers to use their standard PCs to communicate with and control I2C-enabled boards and devices. Standard drivers are provided for...

Featured Documents:
USB-BRIDGEV2-EVAL - User Manual

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Carrier Type
    Temp. Grade
    Pb (Lead) Free
    Buy / Sample
    Part Number
    P9145-I0NAGI
    circleObsolete
    memory
    view_in_ar
    		HLA 100 Tray I Yes
    P9145-I0NAGI8
    circleObsolete
    memory
    view_in_ar
    		HLA 100 Reel I Yes
    P9145-I0NQGI
    circleObsolete
    memory
    view_in_ar
    		VFQFPN 100 Tray I Yes
    P9145-I0NQGI8
    circleObsolete
    memory
    view_in_ar
    		VFQFPN 100 Reel I Yes
