Overview

The P9180A-EVAL is an evaluation board for the P9180A - Programmable Multi-Channel PMIC and the P9148 distributed power units (DPUs). The board provides all necessary connections to evaluate the device features and performance.


The board can be connected to the included USB-BRIDGE adapter to program the internal configuration memory of the PMIC as well as accessing the device I2C interface via Graphical User Interface (GUI). A second connector provides access to the device SVID interface for evaluation.

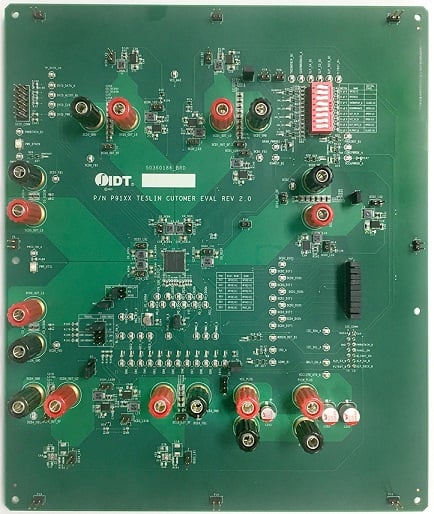

Evaluation Board for P9180A - flat

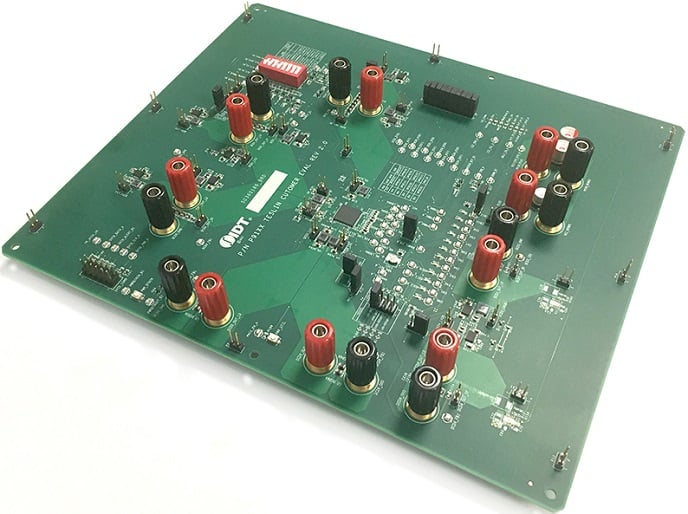

Evaluation Board for P9180A - perspective
Evaluation Board for P9180A - flat
Evaluation Board for P9180A - perspective
  • Evaluation board including the P9180A PMIC and P9147 or P9148 DPUs
  • Two Options for both available P9180A packages
  • Fully assembled with test points, stand-offs and status LEDs
  • USB to I2C dongle board interface for GUI PC connectivity
  • Optional software tool to monitor operation and programming
  • Fully assembled multilayer PCB

Documentation

= Featured Documentation
Type Title Date
Manual - Hardware
P9180A PMIC Evaluation Board User Guide
Log in to Download PDF 6.53 MB
1 item

Product Options

    Processing table
    Buy / Sample
    Part Number
    P9180A-00NHG-EVAL
