Overview
Description

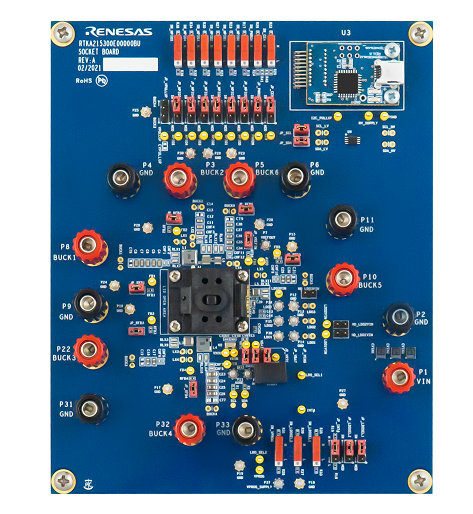

The RAA215300 socket board is used to program or update the internal NVM based on the system requirements. After the NVM is updated, it can be mounted on the target system for system verification.
For more information or to request documentation, please contact your local Renesas sales representative.
Features
- Supports RAA215300 NVM programming
- Include USB-to-I2C dongle and GUI to program the RAA215300 registers
- Complete schematic, layout, user guides and BOM list
Applications
Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 2.15 MB | |
| Manual - Software | PDF 1.44 MB | |
2 items
|
||
