Overview

The ISL95852 is a Power Management Integrated Circuit (PMIC) for ultrabook, notebook and tablet computers powered by 2-cell Li-ion batteries. It integrates control, MOSFET drivers, power MOSFETs, fault protection and fault monitoring functions for three highly efficient synchronous buck regulators. Integrated into one package are the regulators for the core, graphics and system agent voltages. The ISL95852 is offered in a thermally efficient 4mm x 4mm, 64-bump, 0. 5mm pitch WLCSP package. The PMIC regulators convert the system voltage from a battery or adapter into the three necessary processor voltages required by Intel’s IMVP8 specifications. The switching regulators operate at high frequency and are based on Intersil’s proprietary R3™ Technology, which provides high light-load efficiency and fast transient response with minimal external compensation. The PMIC provides overcurrent, overvoltage and over-temperature fault protections. Also provided is a temperature alert signal indicating the PMIC is operating at elevated temperature and an ALERT signal indicates if any other fault or warning has occurred. The PMIC also offers I2C capability compatible with Intel’s SMBus specification.

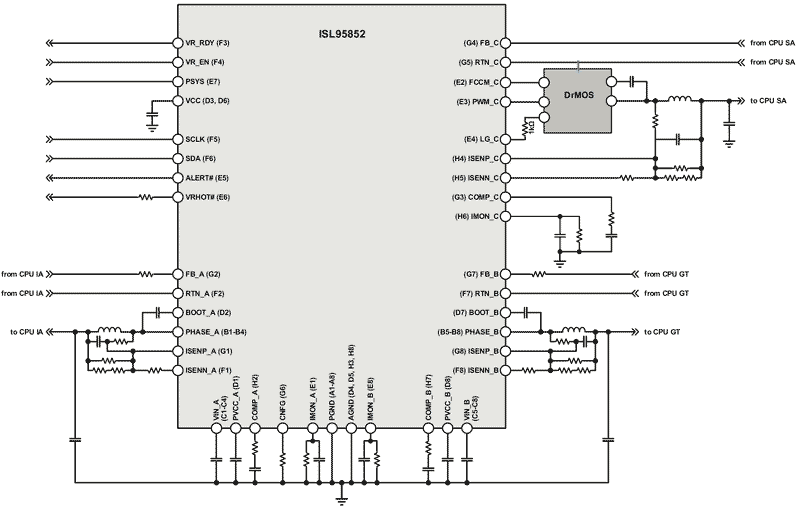

ISL95852 Functional Diagram
ISL95852 Functional Diagram
  • Highly integrated power management IC
  • Efficient high frequency integrated FET switching regulators
  • Integrated regulators to produce core, graphics and system agent rails
  • Extensive fault protection
  • Overcurrent, overvoltage and over-temperature protection
  • Temperature alert signal
  • SVID I2C bus allows system fault monitoring, enable control
  • Output voltage offset programming through SVID I2C

Documentation

= Featured Documentation
Type Title Date
Datasheet - Short-form
ISL95852 Data Short
PDF 191 KB
Datasheet
ISL95852 Datasheet
Log in to Download PDF 1.68 MB
Other
TB500: Computing Power Reference Design Adaptation Guide
PDF 351 KB
Other
TB501: Computing Power Regulator Layout Checklist
PDF 366 KB
Application Note
AN1681: Grounding Techniques
PDF 509 KB
Application Note
AN1684: Nonideality of Ground
PDF 397 KB
6 items

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    MOQ
    Buy / Sample
    Part Number
    ISL95852HIZ-T
    circleObsolete
    memory
    view_in_ar
    		WLCSP-TCURDL Reel 3000
