Overview

The SLG59M1495V single N-channel load switch is designed for load switching applications. The part comes with one 80mΩ 1.0A‑rated MOSFET controlled by a single ON control pin. The MOSFET’s ramp rate is adjustable depending on the input current level of the ON pin. The product is packaged in an ultra‑small 1.0mm x 1.0mm package.

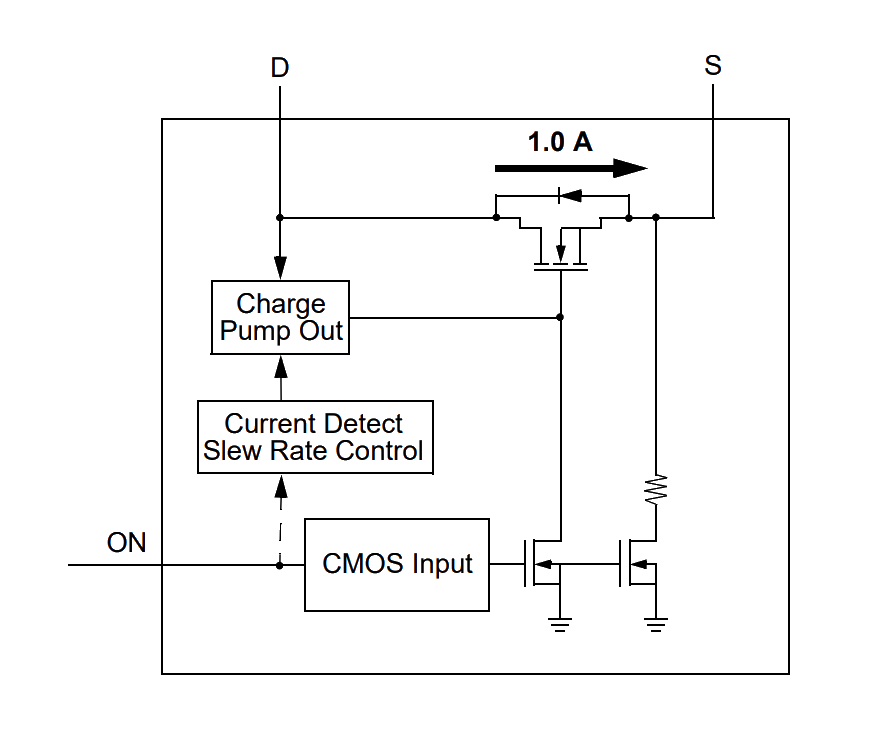

SLG59M1495V Diagram
SLG59M1495V Diagram
  • Optimized for smartphone and notebook/tablet PC applications
  • 80mΩ RDSON while supporting 1.0A
  • Input voltage range: 2.5V ≤ VD ≤ 5.5V
  • Output voltage slew-rate control by resistor
  • Over-temperature protection
  • Output discharge circuitry
  • Sleep mode current (IDDOFF) in low µA range

Documentation

= Featured Documentation
Type Title Date
Datasheet
SLG59M1495V Datasheet
PDF 328 KB
Guide
GreenFET Product Selection Guide
PDF 2.76 MB
Brochure
GreenFET Robust Load Switches
PDF 5.06 MB
Application Note
AN-CM-272 Extending the GreenFET Load Switch Maximum Operating Current
PDF 911 KB
Other
SLG59M1495V Layout Guide
PDF 202 KB
5 items

Design & Development

Software Downloads
Type Title Date
PCB Design Files
GreenFET Altium Library
ZIP 65 KB
PCB Design Files
GreenFET Eagle Library
ZIP 9 KB
PCB Design Files
GreenFET OrCAD Library
ZIP 221 KB
PCB Design Files
High Voltage GreenFET Altium Library
ZIP 23 KB
PCB Design Files
High Voltage GreenFET Eagle Library
ZIP 2 KB
PCB Design Files
High Voltage GreenFET OrCAD Library
ZIP 61 KB
6 items
SLG59M1495V-EVB

SLG59M1495V-EVB

Evaluation
Learn More

SLG59M1495V Evaluation Board

The SLG59M1495V-EVB board evaluates the SLG59M1495V GreenFET, Single N-Channel, Load Switch.
