Overview

The SLG59M1512V GreenFET dual N-channel load switch is designed for power switching applications. The device comes with two 80mΩ 1.0A rated MOSFETs, each controlled by an ON control pin. The ramp rate of each MOSFET is adjustable depending on the input current level of the ON pin. The product is packaged in an ultra‑small 1.6mm x 1.0mm package.

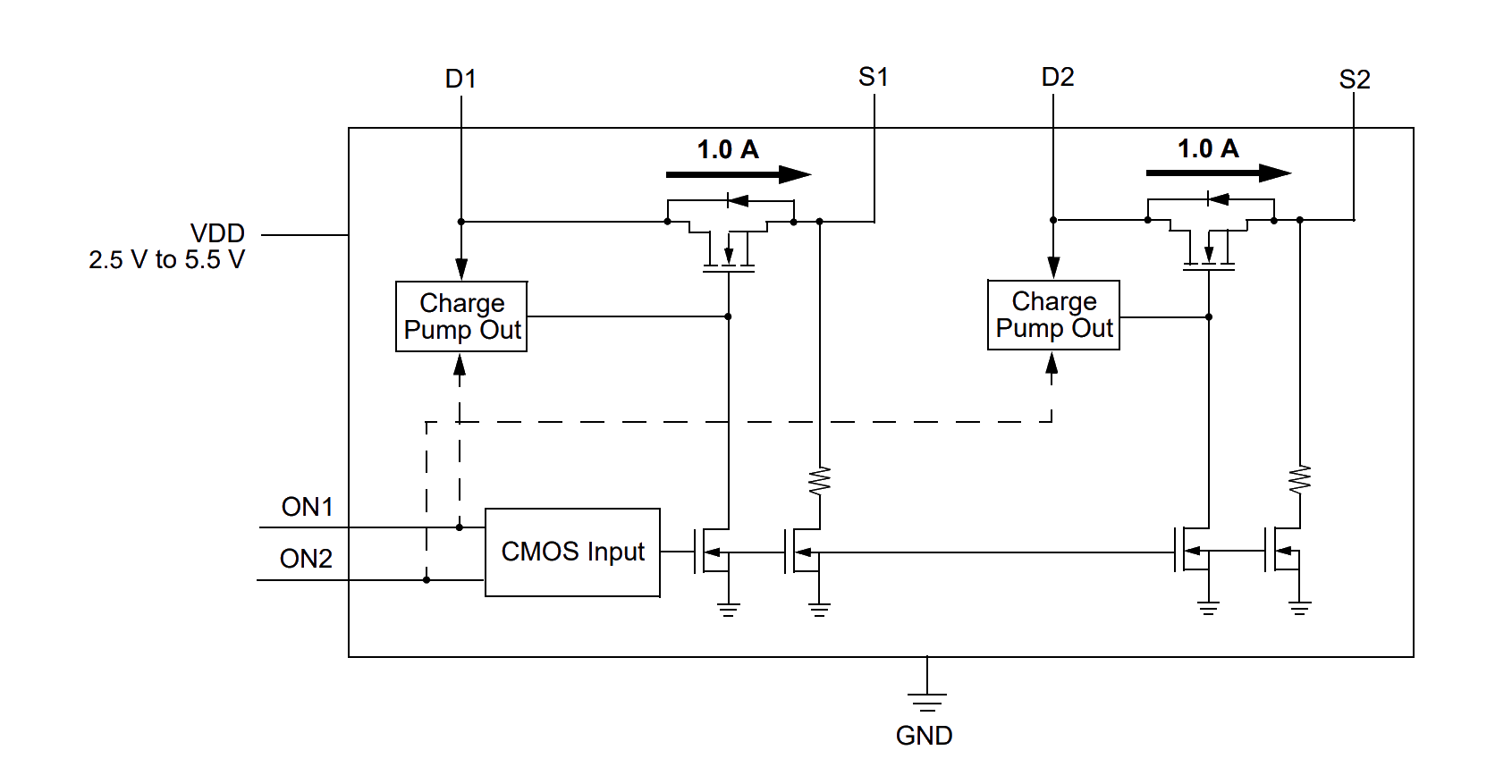

SLG59M1512V Diagram
SLG59M1512V Diagram
  • Optimized for high-current point-of-load applications
  • Power supply: 2.5V ≤ VDD ≤ 5.5V
  • Input voltage range: 0.85V ≤ VD ≤ VDD
  • 80mΩ RDSON while supporting 1.0A
  • Output voltage slew-rate control by resistor
  • Over-temperature protection
  • Output discharge circuitry
