SLG59M1746C Evaluation Board
The SLG59M1746C-EVB board evaluates the SLG59M1746C GreenFET, Single N-Channel, Load Switch.
Overview
Description

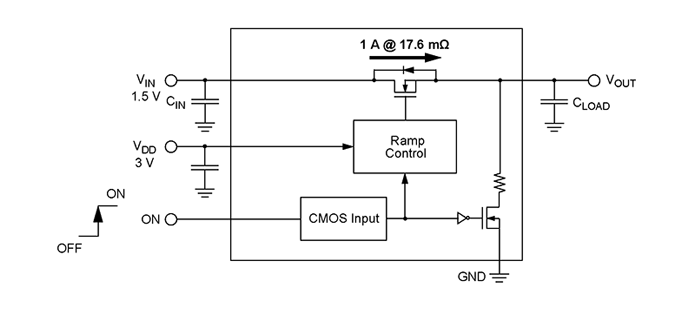

The SLG59M1746C is a high-performance 1A capable, single-channel load switch designed for high-side power control applications up to 1A. This feature-rich nFET load switch has been optimized for all small form factor, single-cell Li-ion applications including smartphones, fitness bands, and watches.
Operating from 2.7V to 3.6V supplies, the SLG59M1746C’s RDSON is 17.6mΩ and exhibits an input voltage range that extends from 0.25V to 1.5V. The SLG59M1746C’s nFET architecture achieves very low supply current operation, controlled VIN inrush current profile, and world-class VIN range to rival the performance of many general-purpose nFET and pFET load switches on the market.
Using Renesas’ proprietary MOSFET IP, the SLG59M1746C achieves a stable RDSON as a function of both the supply and input voltages. Fully specified over the -40 °C to 85 °C temperature range, this advanced nFET load switch is available in a 6-lead WLCSP package measuring 0.71mm x 1.16mm x 0.5 mm with 0.35 mm pitch. The SLG59M1746C consumes less than 1μA after start up.
Features
- High-performance nFET Design
- Low Typical RDSON: 17.6mΩ
- Steady-state Operating Current: 1A
- Low, Fixed Inrush Current: 9mA
- Very Low Supply current after startup: < 1μA
- Operating VDD Range: 2.7V ≤ VDD ≤ 3.6V
- Operating VIN Range: 0.25V ≤ VIN ≤ 1.5V
- Fast VOUT Discharge
- ON/OFF Control: Active HIGH
- Operating Temperature: -40 °C to 85 °C
- Pb-free/Halogen-free/RoHS compliant
Comparison
Applications
- Smartphones
- Fitness Bands
- Watches
- Tablet PCs
- GPS Devices
- Portable POS Terminals
