Overview
Description

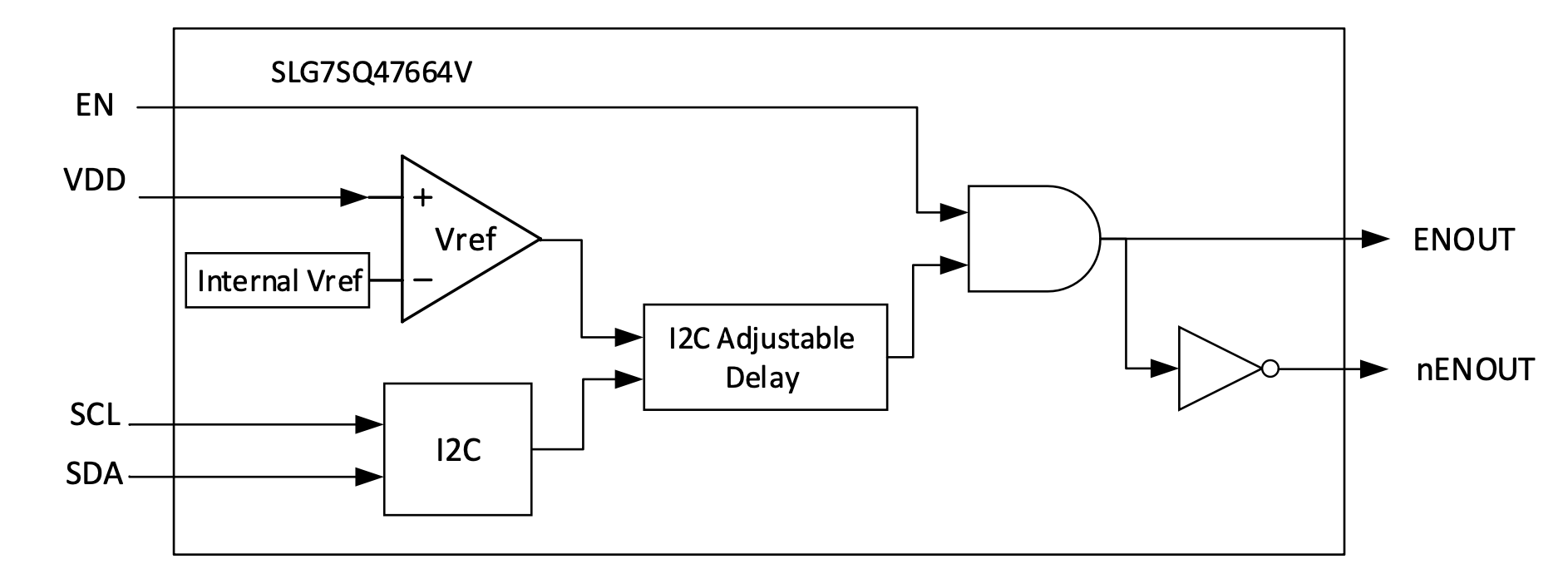

The SLG7SQ47664V is a compact, single-channel, low power simple sequencer IC. It features configurable time delays and trigger thresholds, ensuring accurate power-up sequencing for many applications. With open-drain output stages on PIN9 and PIN10, this device offers flexible compatibility with various logic levels and is easily configurable via I2C.
For custom configurations, visit the GreenPAK Programmable Mixed-Signal Products page.
Features
- Low power consumption
- Programmable time delays between enable signals, no need for external capacitor adjustable time delays
- Power supply monitoring from 0.05V to VDD, no need for an external resistor to adjust the voltage monitoring threshold
- Output stages: inverting or non-inverting open-drain output
- Pb-free/RoHS compliant
- Halogen-free
- STQFN-12 package
Comparison
Applications
- Desktop/notebook computers, servers
- Low-power portable equipment
- Routers base stations
- Line cards
- Graphics cards
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 927 KB | |
1 item
|
||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| STQFN | 12 | 1 | Pb-Free |
