Overview
Description

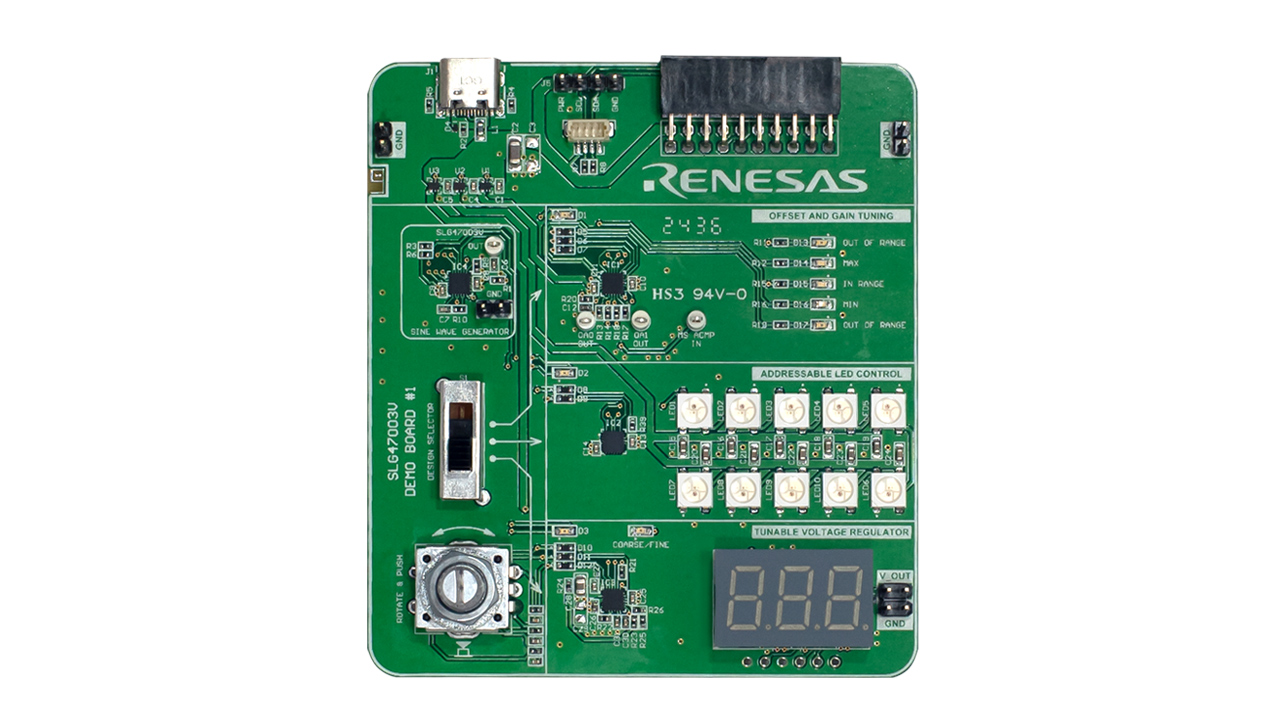

The SLG47003V Demo Board is designed to demonstrate the basic capabilities of this integrated circuit. Three designs are implemented on the board, an analog signal detector, a digital output for programmable LED, and a linear regulator.
Features
- External board power from USB Type-C port
- GreenPAK Serial Debugger support
- GreenPAK Advanced Development Platform support
- Go Configure Software Hub software compatible
- Two Test Points (TS) for output of internal op amps
- Encoder for schematic parameters regulation
Applications
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 1.67 MB | |
1 item
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Go Configure™ Software Hub Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
|
Software Package | Renesas |
1 item
|
||
Processing table
SLG47003V-DMO Active |
