32-pin to 20-pin Adapter for GreenPAK SLG468x
The SLG4AB2 is a 32-pin to 20-pin adapter for SLG468x development on SLG4DVKADV Advanced Development Board.
Overview
Description

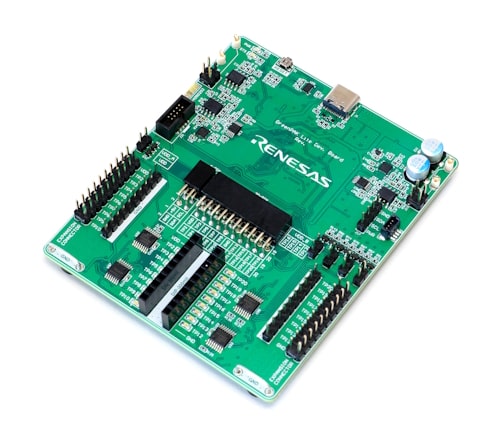

The GreenPAK Lite Development Board provides full programming, emulation, and testing functions for GreenPAK devices, working in a pair with the Go Configure™ Software Hub. Board functionality is provided by the RX66T MCU from Renesas.
Features
- USB 2.0 board power and communication
- DIP and socket adapters support
- Dual VDD IC’s support
- Built-in current meter for both IC’s VDD sources
- USB-I2C bridge functionality
- 18 individually configurable test points (TP):
- Onboard LED state indication
- Pull-up, pull-down, GND, VDD, Hi-Z, VDD2
- Programmable software button
- Configurable dual pin header for user schematic integration and signal monitoring (expansion connector)
- Four floating hooks for oscilloscope connection
Applications
Applications
- Programming
- Emulation
- Signal logic generators
