Evaluation System for the F5288 8-Channel Dual-Polarization TRX Beamformer IC
The F5268 Evaluation System is designed to help users evaluate the Beamformer device. When connected to a PC running the software, the device can be configured and...
Overview
Description
The F5288 is an eight-channel transceiver (TRX) silicon IC designed for dual polarization 5G phased-array applications at n257/n261 band. This device provides more than 15.5dBm linear output power* in silicon for wideband 5G-NR waveforms.
*Power level with < 3% EVM using 400MHz 5G-NR CP-OFDM waveform
Features
- 26.5GHz to 29.5GHz operation
- 8 radiation channels, beam-per-polarization
- Flexible output power and high efficiency with Dynamic Array Power (DAP™)
- ArraySense™ technology for real-time monitoring
- High-speed SPI control with RapidBeam™ technology

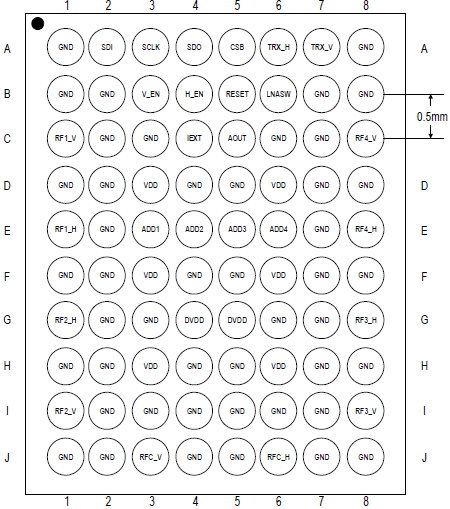

- 5.1mm × 5.1mm, 118-BGA package with exposed-die
- -40 °C to +95 °C ambient operating temperature range
Comparison
Applications
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet - Short-form | PDF 58 KB | |
| Datasheet | PDF 1.68 MB | |
| Guide | PDF 2.24 MB | |
| Product Brief | PDF 728 KB | |
4 items
|
||
Design & Development
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| FCCSP | 118 | I | Tray | 3 | 112.48 | Get Samples, | |
| FCCSP | 118 | I | Reel | 3 | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
mmWave 5G Front Ends with Dynamic Array Power (DAP™) Optimization Deliver Differentiated Designs
Tumay delivers an overview of designing mmWave 5G phased arrays and how to differentiate your designs with the unique features of Renesas active beamforming ICs.
