Overview

The F6923 is an ultra-low power consumption, dual-channel, low noise amplifier (LNA) RFIC designed for application in Ku- Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation. An external bias current provides gain control, standby mode and temperature compensation.

The F6923 includes two independent gain/phase matched LNA channels in a compact 23-pin, 0.5mm pitch BGA package. All inputs and outputs are single-ended and 50Ω matched for ease of integration on to phased array antenna panels.

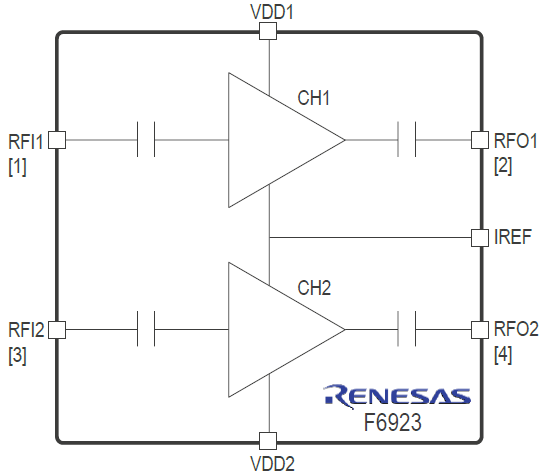

F6923 - Block Diagram
F6923 - Block Diagram
  • Frequency: 14GHz – 17GHz
  • Gain: 19.5 dB
  • Noise figure: 1.5dB
  • Output P1dB: -1.5dBm
  • Power consumption: 16mW/ch
  • Channel isolation: 35dB
  • Supply voltage: 0.9V – 1.0V
  • Common bias control input
  • Compact size for planar integration on λ/2 grid
  • 2.7mm × 2.7mm × 0.9mm, 23-pin BGA
  • -40 °C to +85 °C ambient operating temperature range
