Overview
Description

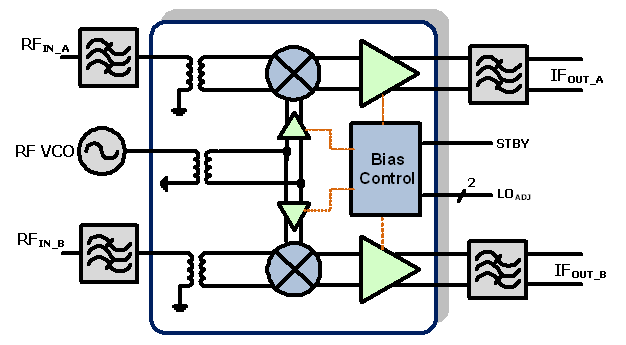

This device is part of a series of downconverting mixers covering all Universal Terrestrial Radio Access (UTRA) bands. The F1100 dual-channel device operates with a single 5V supply. It is optimized for operation in a multi-carrier base station receiver for RF bands from 698MHz to 915MHz with high-side injection. IF frequencies from 150MHz to 450MHz are supported. Nominally, the device offers +41dBm output IP3 with 350mA of ICC.
A member of the Zero-Distortion™ family, this RF to IF mixer reduces distortion for improved SNR while simultaneously reducing power consumption.
Features
- Dual path for diversity systems
- Ideal for multi-carrier systems
- MIMO friendly: -6dBm min LO drive
- 9dB gain
- Ultra-linear: +41dBm IP3O (350MHz IF)
- Low NF ~10dB
- 200Ω output impedance
- Ultra-high +13dBm P1dBI
- Pin-compatible with existing solutions

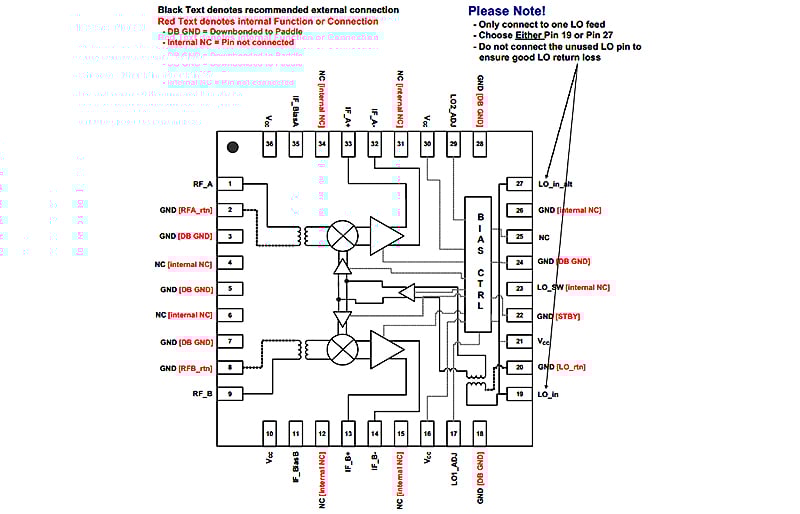

- 6mm x 6mm 36-pin package
- Power Down mode
- Standard mode: ICC = 350mA
