Overview
Description

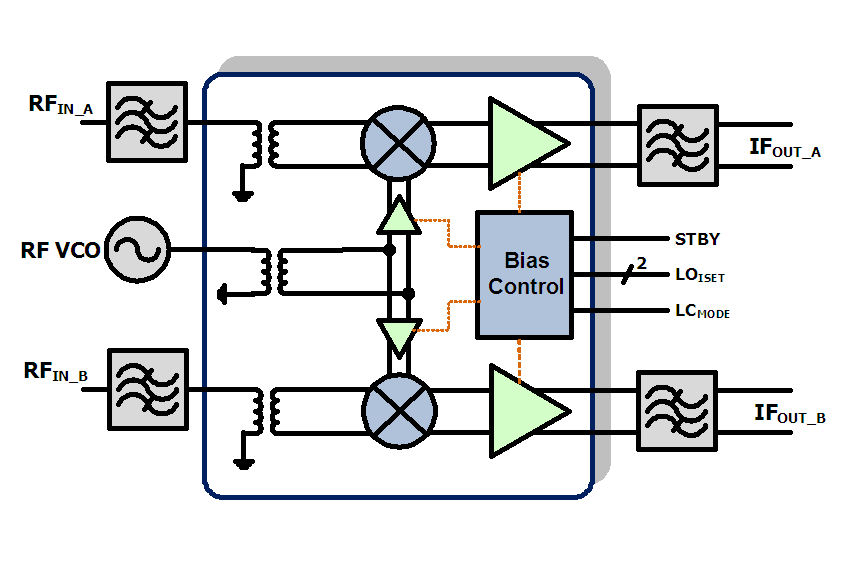

The IDT F1152 dual channel device is designed to operate with a single 5V supply. It is optimized for operation in a Multi-mode, Multi-carrier BaseStation Receiver for RF bands from 1700 - 2200 MHz with Low Side Injection. IF frequencies from 50 to 350 MHz are supported. Nominally, the device offers +42 dBm Output IP3 with 335 mA of ICC. Alternately one can adjust 4 resistor values and a toggle pin to run the device in low current mode with +37 dBm Output IP3 and 235 mA of ICC.
A member of IDT’s Zero-Distortion™ family, this RF to IF mixer reduces distortion for improved SNR while simultaneously reducing power consumption.
Features
- Dual Path for Diversity Systems
- Ideal for Multi-Carrier Systems
- 8.5 dB Gain
- Ultra linear +42 dBm IP3O
- Low NF < 10 dB
- 200 ohm output impedance
- Ultra high +13 dBm P1dBI
- Drop in replacement for existing radiocards

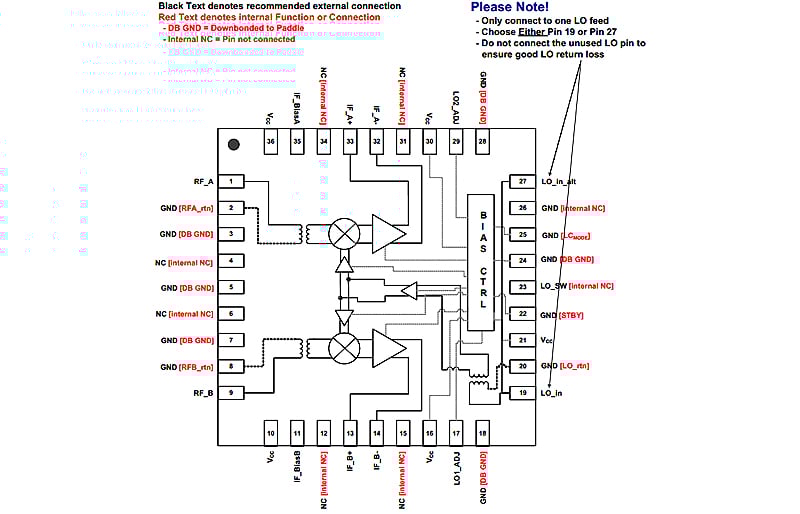

- 6x6 mm 36 pin package
- Power Down mode
- < 200 nsec settling from Power Down
- Minimizes Synth pulling in Standby Mode
- Low Current Mode : ICC = 235 mA
- Standard Mode: ICC = 335 mA
- 1400 to 1600 MHz operation w/Low Side Injection
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 2.62 MB | |
| Product Change Notice | PDF 674 KB | |
| Guide | PDF 2.24 MB | |
| Product Brief | PDF 1.12 MB | |
| Application Note | PDF 643 KB | |
| Product Change Notice | PDF 39 KB | |
| Product Change Notice | PDF 35 KB | |
| Product Change Notice | PDF 33 KB | |
8 items
|
||
Design & Development
Available Modular Designs by X-Microwave:
XM-A7E3-0409D Mixer
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
