Overview
Description

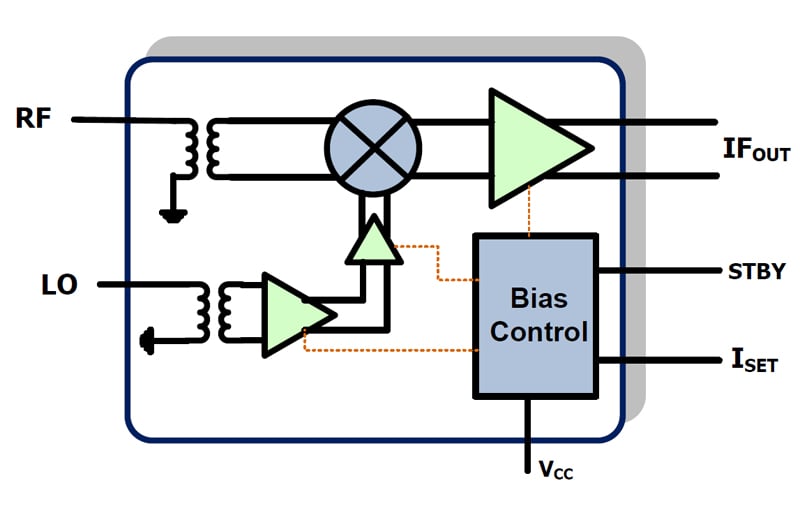

The F1701, F1751, and F1763 are pin-compatible RF to IF single-channel downconverting mixers ideal for many receiver (Rx) applications. These devices employ Zero-Distortion™ technology to practically eliminate the third order intermodulation response. The devices feature high gain (~12dB) and a low noise figure in addition to outstanding output IP3 (> +40dBm)
Features
- Single mixer ideal for multi-carrier systems
- 3 versions cover 700MHz to 2700MHz
- Low-side or High-side LO
- 11.8dB Gain
- Ultra-linear +43dBm IP3O using HS LO or +37.5dBm IP3O using LS LO
- 9.7dB NF
- 200Ω output impedance
- Wide flat-performance IF BW
- Drives ADC directly for DPD applications
- Low power consumption

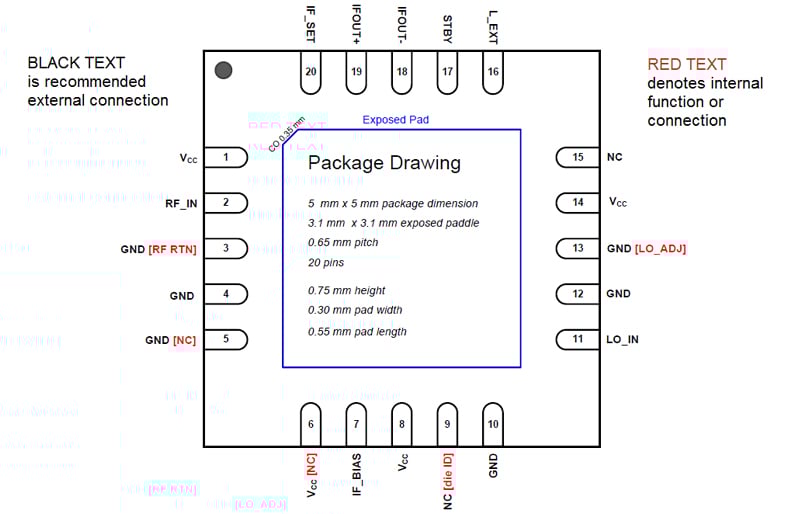

- 5mm x 5mm 20-pin package
- Standby mode
