Overview
Description

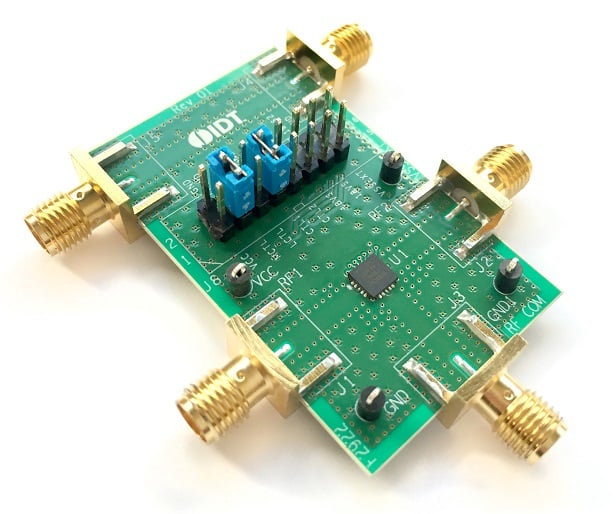

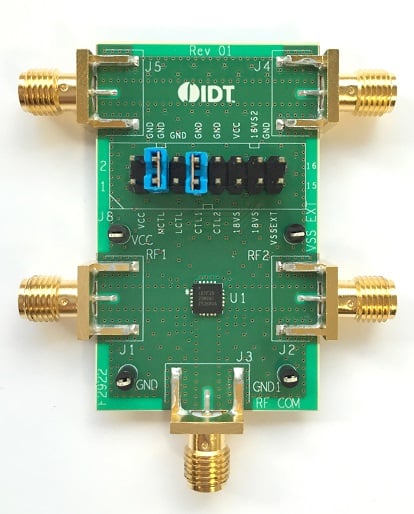

The F2923EVBI is a fully populated evaluation board which allows the customer to easily evaluate the product.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. Each RF port (RFC, RF1 and RF2) can be connected to RFC by applying the correct control logic voltage to the V1 and V2. The Mode Control pin 19 allows the part to be configured for either 1 pin or 2 pin control.
Features
- RF connectors for RFC and each RF ports
- The F2923 EVkit has a number of control features available

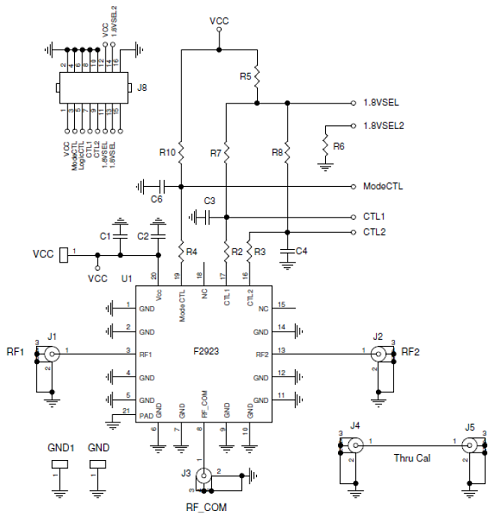

- Refer to the EVkit Application Circuit , EVkit Picture and Applications information in the datasheet to properly connect to and control the evaluation board features
- All bias and logic controls are applied to the appropriate pins of the pin header located on the evaluation board
- “Thru” port connectors are located on the evaluation board for easy calibration prior to making RF measurements
