Overview
Description

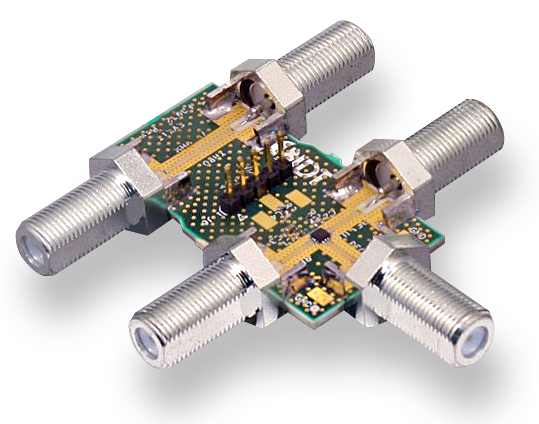

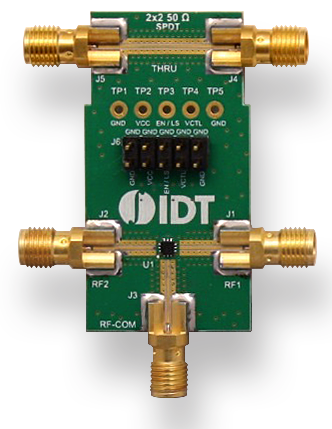

The F2976EVBI is a fully populated evaluation board, enabling easy RF evaluation of the product. It is available in 50Ω or 75Ω terminating impedance.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. The RF through measurement (RF1 to RF2) can be made by applying the correct control logic voltage to the control pins as outlined in the datasheet. DC power, ground and the control voltages are applied to the pin header.
Features
- 50Ω or 75Ω RF connectors for RFC, RF1 and RF2, and the "Thru" calibration ports for easy calibration prior to making RF measurements
- The F2976 Evaluation Kit has a number of control features available
- Refer to the Evaluation Kit Application Circuit , Evaluation Kit Picture and Applications information in the datasheet to properly connect to and control the evaluation board features
- All bias and logic controls are applied to the appropriate pins of the pin header located on the evaluation board
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 4.05 MB | |
1 item
|
||
Processing table
F2976EVBI-50OHM Active Samples Available
Buy Now
|
50 | Get Samples, |
F2976EVBI-75OHM Active Samples Available
Buy Now
|
75 | Get Samples, |
