Evaluation Board for the F0562 Integrated TRx IC
The F0562EVB is a fully populated test board enabling easy evaluation of the F0562 Integrated TRx IC.
Featured Documents:
Overview
Description
The F0562 provides 29dB gain and offers 47dB gain adjustment in 1dB steps designed to operate with a single 5V supply. Nominally, the device offers +44dBm Output IP3 using 480mA of ICC. Alternately, the device can be configured in low current (LC) mode to reduce power consumption to < 2 Watts.

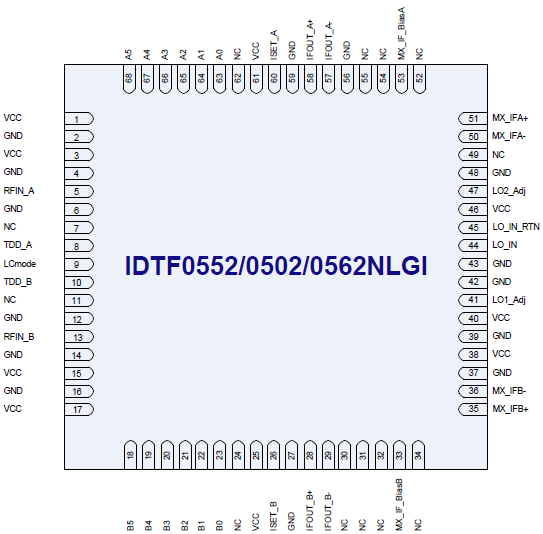

This device is packaged in a 10 × 10 mm 68-VFQFPN with 50Ω single-ended RF input and 200Ω differential IF output impedances for ease of integration.
Features
- Dual path for MIMO systems
- 29dB max power gain
- Ultra linear +44dBm OIP3
- Low NF: 9.9dB at GMAX
- Ultra high +19.8dBm OP1dB
- Independent path standby mode
- Constant LO impedance in STBY mode
- 47dB gain control range, 1dB steps
- 60MHz to 450MHz IF frequency range
- Excellent 2nd Harmonic Rejection
- ICC = 390mA LC Mode
- 10 × 10 mm 68-VFQFPN package
