F1280 Dual Variable Gain Amplifier Evaluation Kit
The F1280EVK is a fully populated evaluation board that allows the customer to evaluate the F1280 dual VVA+VGA with integrated RMS detectors. The F1280 VGA gain ranges...
Featured Documents:
Overview
Description

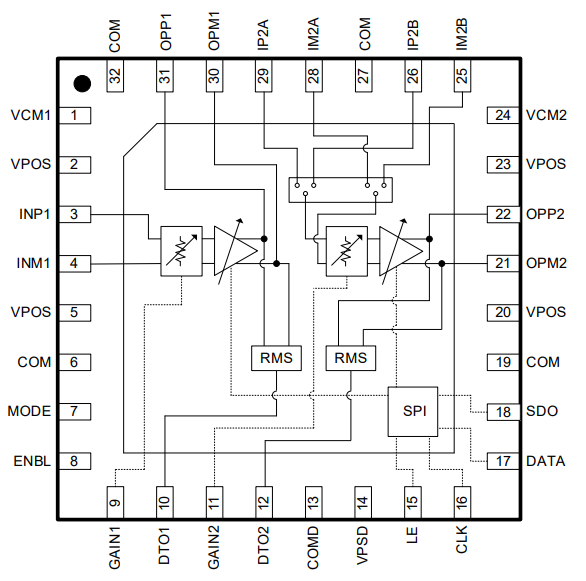

The F1280 is a highly integrated 0.001MHz to 1200MHz dual VVA+VGA with integrated RMS detectors. The two independently controlled VVA+VGAs each provide 24dB of gain range with four different selectable gain ranges. The VGA gain ranges and switchable VGA2 inputs are controlled through an SPI interface with a 10MHz maximum clock operating frequency.
Features
- 200Ω differential inputs and 100Ω outputs
- Dual VVA+VGA with output RMS detectors
- SPI configurable VGA gain range
- 24dB gain range for each VVA
- Switchable dual inputs for VGA2
- Power-down feature
- Supply voltage: +4.75V to +5.25V
- Total supply current: 145mA
- 5mm x 5mm, 32-VFQFPN package
- -40 °C to +105 °C exposed pad operating temperature range
Comparison
Applications
- Wireless infrastructure
- Medical devices
- General RF
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.19 MB | |
| Guide | PDF 2.24 MB | |
2 items
|
||
Design & Development
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| VFQFPN | 32 | I | Yes | Tray | 1 | Get Samples, | |
| VFQFPN | 32 | I | Yes | Reel | 1 | Get Samples, |
