TVOC and Indoor Air Quality Sensor Pmod™ Board (Renesas QuickConnect IoT)
The US082-ZMOD4410EVZ board enables quick prototyping of the ZMOD4410 gas sensor module for indoor air quality (IAQ) in a custom system design. The board provides a...
Overview
Description
The ZMOD4410-EVK simplifies the evaluation of the ZMOD4410 Indoor Air Quality (IAQ) sensor. This sensor module is supported with the firmware to operate the sensor in multiple modes: IAQ 2nd Gen, Ultra-Low Power mode, and PBAQ1. Depending on the selected mode, the output can be displayed as a raw signal (resistance), a standardized IAQ rating, an absolute TVOC and estimated CO2 concentration, or a relative signal change. To initiate the sensor, simply connect the EVK to a Windows PC via USB and utilize the provided evaluation software.
The ZMOD4410-EVK consists of the following:

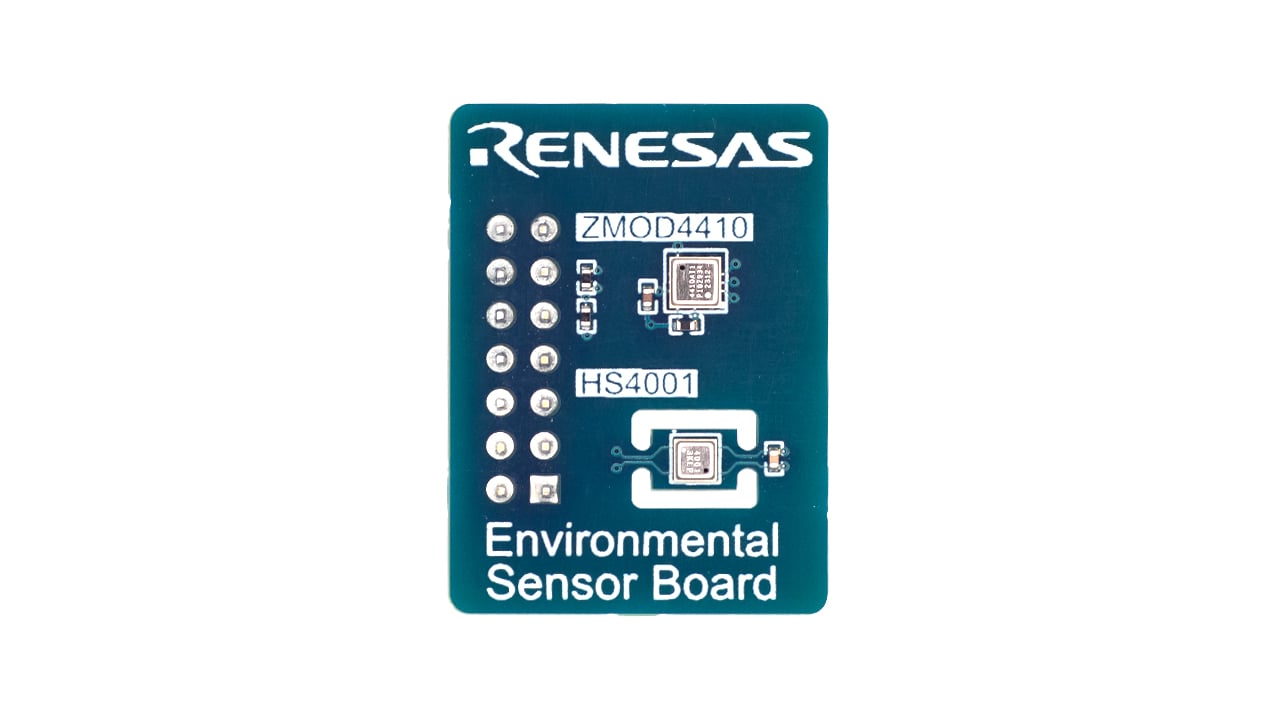

- ZMOD4410 and HS4001 sensor daughterboard
- Environmental Sensor Communication (ESCom) Board
- USB Cable
- Quick Start Guide
Evaluation kit software (GUI) can be downloaded from the Software Downloads section on this page.
- PBAQ is a term coined by Renesas and indicates a public building air quality standard, such as WELL or RESET.
Features
- Hardware includes USB cable and Quick Start Guide
- HiCom I²C communication assembly
- Evaluation Kit software (GUI) for all available ZMOD4410 operation modes, including IAQ 2nd Gen, Ultra-Low Power, Odor and Sulfur-Odor
- Additional pins to measure power consumption, supply voltage, and GPIO trigger for external devices
- Evaluation Kit is also available in a waterproof package (ZMOD4410-EVK-HC-WP)
Applications
Design & Development
Processing table
ZMOD4410-EVK-HC Active Samples Available
Buy Now
|
Full Evaluation Kit including ZMOD4410-EVK-DB | Get Samples, |
ZMOD4410-EVK-DB Active Samples Available
Buy Now
|
Standalone ZMOD4410 Sensor Board as spare part | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Videos & Training
ZMOD4410 TVOC and Indoor Air Quality Sensor Platform Overview
This is a brief overview of the Renesas ZMOD4410 gas sensor platform, which provides best-in-class stability and sensitivity to identify trace gases in various indoor environments. These air quality sensors feature a miniature package with waterproof capability, an integrated ASIC, and a MEMS sensing element comprised of a controlled heater and proven metal oxide (MOx) material. The firmware upgradeable platform makes the ZMOD4410 portfolio capable of providing a variety of measurement options by varying the method of operation or changing the firmware used to interpret the resistance measurements.
