USB Communication and Programming Board for ZMID Application Modules
USB communication and programming board for ZMID inductive application modules. An application module (e.g. ZMID5201MROT; not included, available as a separate item)...
Overview
Description

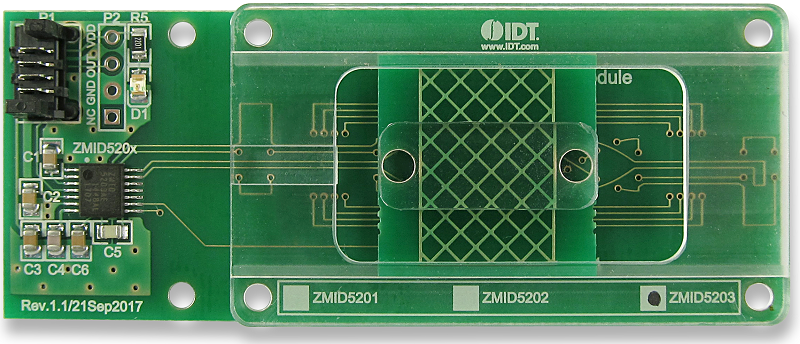

The ZMID5203MLIN is an inductive linear position sensor module including sensor PCB, target and target holder.
NOTE: This module is pre-programmed and characterized. For changing programming options, such as motion range or diagnostic settings, the ZMID communication board (ZMID-COMBOARD) is required.
Features
- Contactless
- High-resolution linear position measurement
- Digital SENT output
- Strayfield-immune
Applications
Documentation
= Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 3.27 MB | |
| Manual - Development Tools | PDF 459 KB | |
| Manual - Software | PDF 1.01 MB | |
| Manual - Development Tools | PDF 985 KB | |
4 items
|
||
