SSC Communication Board
The SSC Communication Board is included in Renesas' modular SSC Evaluation Kits for select sensor signal conditioner (SSC) ICs. It is also part of the modular SSC Mass...
Featured Documents:
Overview
Description

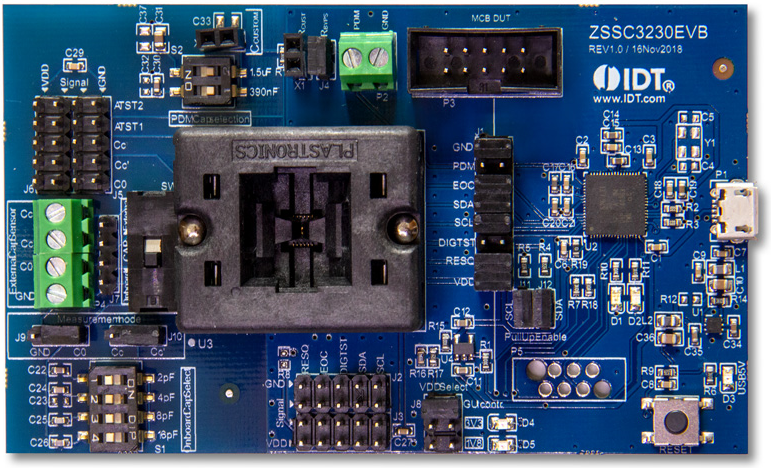

The ZSSC3230 SSC Evaluation Kit contains the hardware needed for configuration, calibration and evaluation of the ZSSC3230 capacitive sensor signal conditioning (SSC) ICs. The user's computer can communicate with the ZSSC3230 IC socketed on the Evaluation hardware through an USB connection. The Evaluation Kit Software is available on-line for free download.
The ZSSC3230 SSC Evaluation Kit can connect to the user's capacitive sensor or provide on-board capacitors for simulating input from a capacitive sensor.
Features
- SSC Evaluation Board hardware
- 5 ZSSC3230 samples
- USB Cable
