Evaluation Kit for ZSSC3026
The ZSSC3026KIT Evaluation Kit provides the hardware needed for configuration, calibration and evaluation of the ZSSC3026 Sensor Signal Conditioner IC. The user's PC...
Featured Documents:
Overview
Description

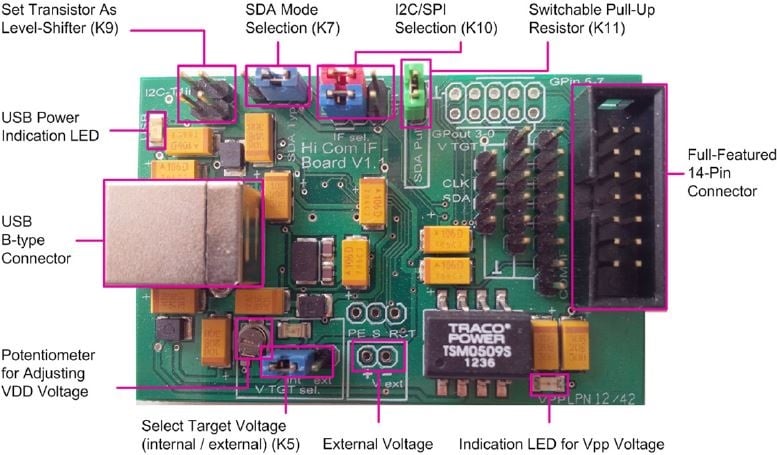

The ZSSC3xxx Communications Board is included in Renesas's modular SSC Evaluation Kits for select resistive ZSSC3xxx sensor signal conditioner (SSC) ICs. (Note: this board is not applicable to some ZSSC3xxx kits.) It provides communication between the user's computer and the SSC IC mounted on the ZSSC3xxx Evaluation Board or the user's module. It can be ordered separately.
