Overview

The HS-1145RH is a High-Speed, low power current feedback amplifier built with Intersil's proprietary complementary bipolar UHF-1 (DI bonded wafer) process. These devices are QML approved and are processed and screened in full compliance with MIL-PRF-38535. This amplifier features a TTL/CMOS compatible disable control, pin 8, which when pulled low, reduces the supply current and forces the output into a high impedance state. This allows easy implementation of simple, low power video switching and routing systems. Component and composite video systems also benefit from this op amp's excellent gain flatness, and good differential gain and phase specifications. Multiplexed A/D applications will also find the HS-1145RH useful as the A/D driver/multiplexer. Specifications for Rad Hard QML devices are controlled by the Defense Supply Center in Columbus (DSCC). The SMD numbers listed here must be used when ordering. Detailed Electrical Specifications for these devices are contained in SMD 5962-96830.

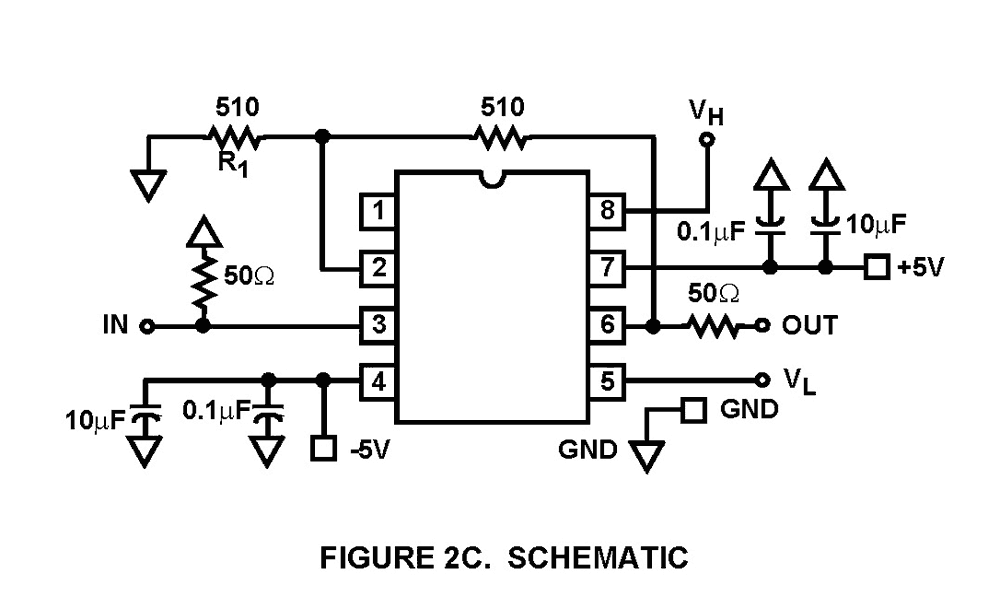

HS-1145RH Functional Diagram
HS-1145RH Functional Diagram
  • Electrically Screened to SMD # 5962-96830
  • QML Qualified per MIL-PRF-38535 Requirements
  • Low Supply Current 5.9mA (Typ)
  • Wide -3dB Bandwidth 360MHz (Typ)
  • High Slew Rate 1000V/µs (Typ)
  • Excellent Gain Flatness (to 50MHz) ±0.07dB (Typ)
  • Excellent Differential Gain 0.02% (Typ)
  • Excellent Differential Phase 0.03 Degrees (Typ)
  • High Output Current 60mA (Typ)
  • Output Enable / Disable Time 180ns/35ns (Typ)
  • TID Rad Hard Assurance (RHA) testing
    • HDR (50-300rad(Si)/s): 300krad(Si)
  • Latch Up None (DI Technology)

Applications

  • Multiplexed Flash A/D Driver RGB Multiplexers / Preamps Video Switching and Routing Pulse and Video Amplifiers Wideband Amplifiers RF/IF Signal Processing Imaging Systems

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Carrier Type
    MOQ
    DLA SMD
    Buy / Sample
    Part Number
    HS0-1145RH-Q
    circleActive
    memory
    view_in_ar
    		100 5962F9683001V9A
    HS7B-1145RH/PROTO
    circleActive
    memory
    view_in_ar
    		SBDIP Tray 1
    HS7B-1145RH-Q
    circleActive
    memory
    view_in_ar
    		SBDIP Tray 25 5962F9683001VPC
