Overview
Description

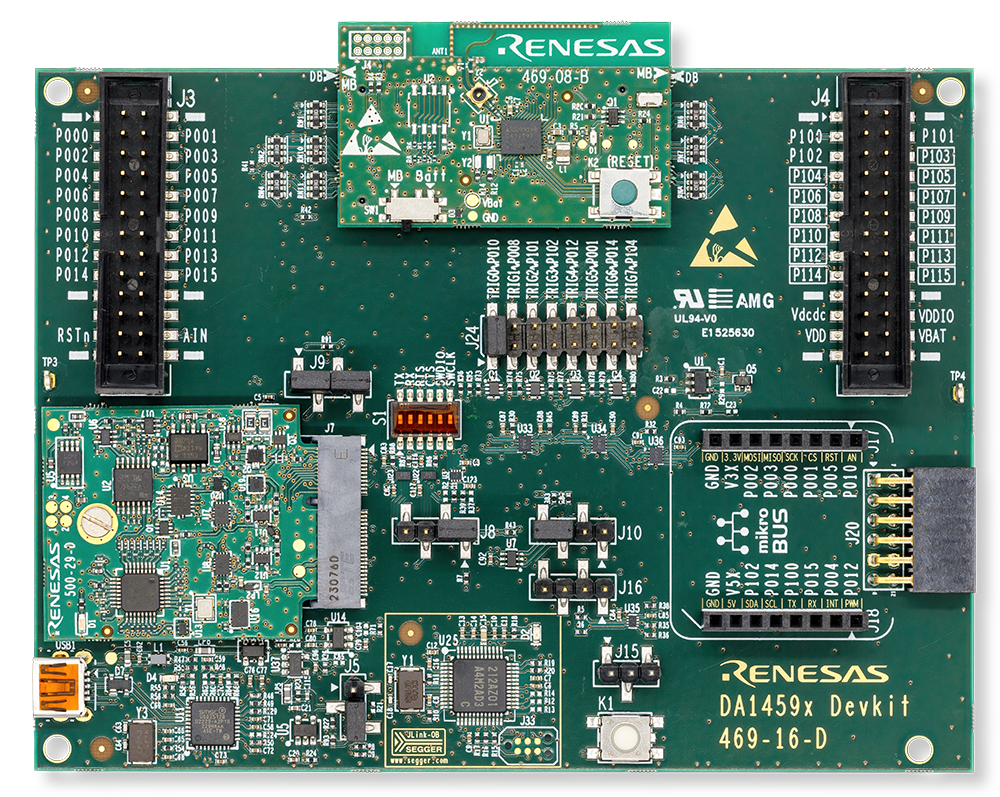

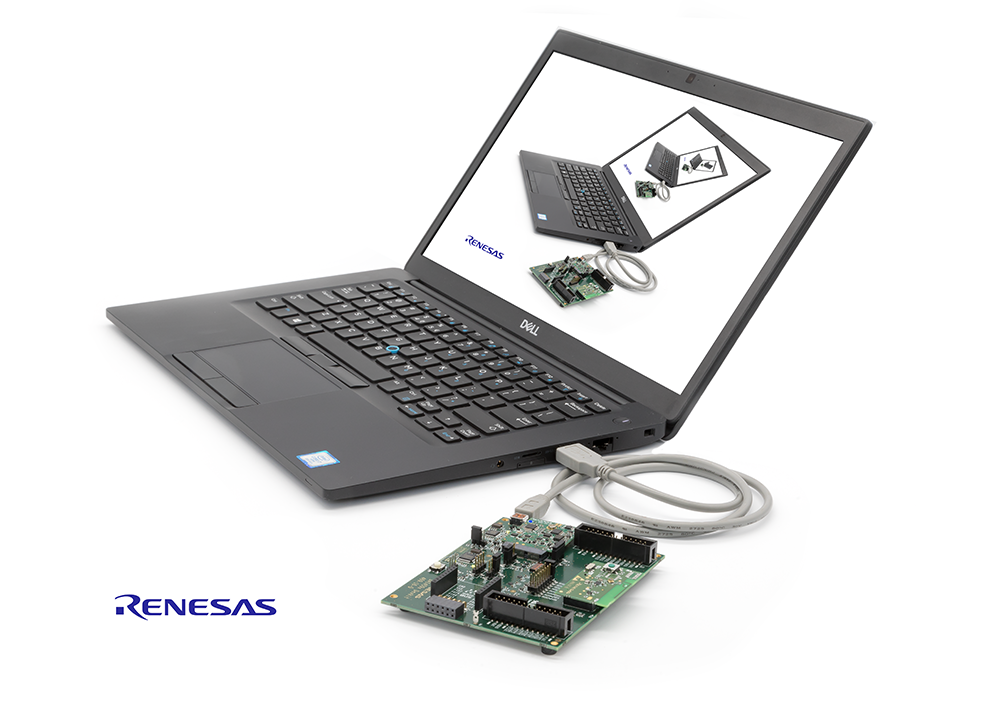

The DA14592-016FDEVKT-P Bluetooth® Low Energy Development Kit Pro includes a motherboard, daughterboard, and cables. This kit is specifically designed for software application development and power measurements.
DA14592 is a dual-core Bluetooth 5.2 SoC with 256kB of embedded Flash that operates at ultra-low power levels providing world-class RF performance. DA14592 is available in both FCQFN and WLCSP packages.
Features
- Motherboard, SoC daughterboard, USB cable, and Quick Start Guide
- Easily attached/detached daughterboards
- Integrated power measurement module
- Can be powered from a USB power bank
- DC/DC buck or LDO mode operation
- MikroBUS and Pmod™ headers
- SEGGER J-Link debugger
Applications
- Crowdsourced location tracking
- Asset tracking
- Connected health
- Human interface device
- Activity tracker
- Toys
- Data logger
- PoS reader
- Metering
- High-end voice RCU
- IoT end node
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 6.24 MB | |
| Manual - Development Tools | ||
| Schematic | PDF 613 KB | |
| Schematic | PDF 2.09 MB | |
4 items
|
||
