SmartBond™ DA14592 Module Bluetooth Low Energy 5.2 Development Kit Pro
The DA14592MOD-01DEVKT-P Bluetooth® Low Energy Development Kit Pro includes a motherboard, daughterboard, and cables. This kit is specifically designed for software...
Overview
Description

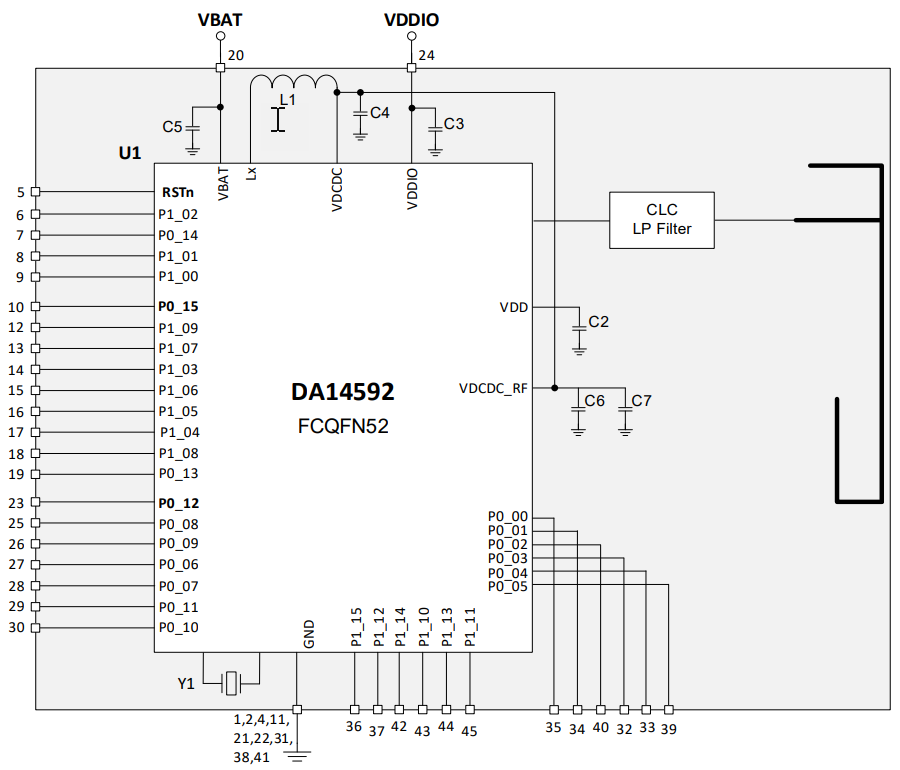

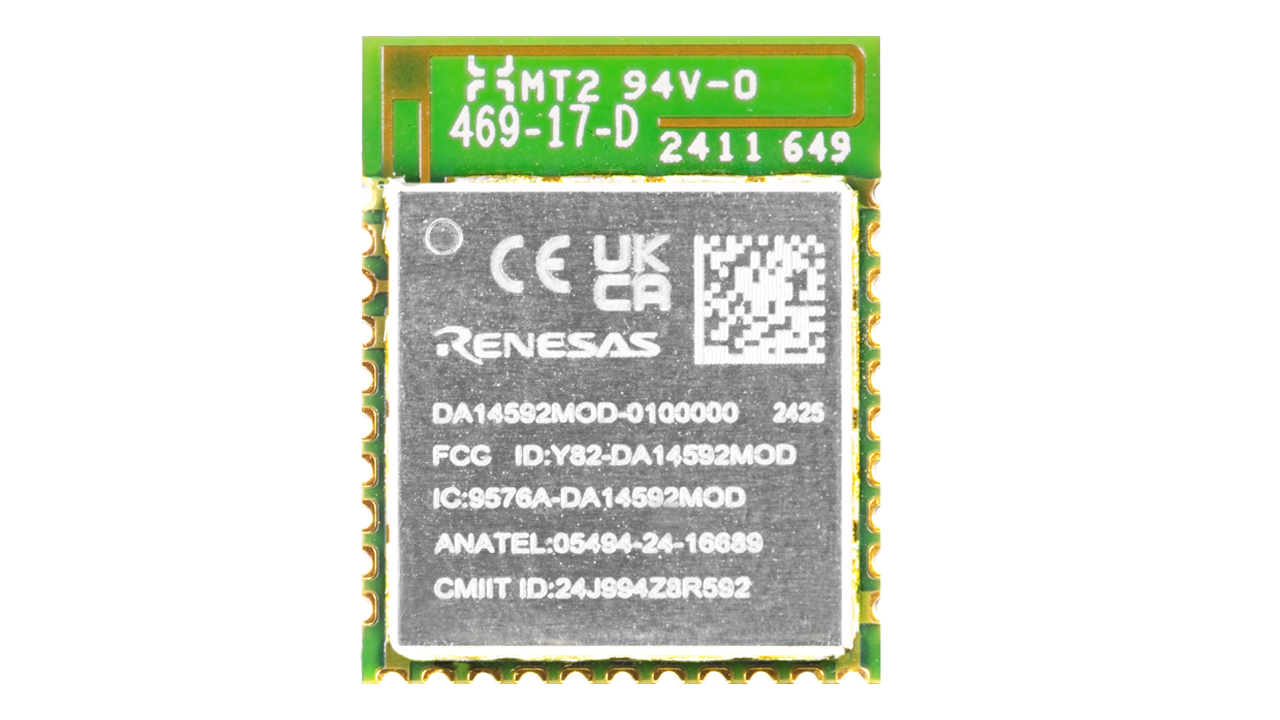

The DA14592MOD is based on the DA14592 Bluetooth® Low Energy 5.2 system-on-chip (SoC) and brings out all its hardware features and capabilities. The module integrates all passives and the antenna, and is supported by user-friendly software. The DA14592MOD targets broad market use and is certified across regions, providing significant reductions in development cost, risk, and time-to-market. A variety of standard and advanced peripherals enable interaction with other system components and the development of advanced user interfaces and feature-rich applications.
The DA14592 is a multi-core wireless microcontroller, combining the latest Arm® Cortex®-M33™ application processor with a floating-point unit, advanced power management functionality, a cryptographic security engine, analog and digital peripherals, and a software-configurable protocol engine with a radio that is compliant with the Bluetooth 5.2 Low Energy standard. It includes 256kB of embedded Flash and 96kB of RAM.
Features
- Dual-core: Cortex-M33F at 64MHz as application core, Cortex-M0+ at 64MHz as configurable MAC
- Receive sensitivity -97dBm, Transmit +5.5dBm
- 96kB RAM (+16kB Cache), 256kB Flash, 288kB ROM (incl. stack), QSPI external Flash/RAM expansion
- 8-ch, 15 Sigma-Delta ADC
- Power consumption: RadioRx = 1.2mA, RadioTx = 2.3mA, Active = 34uA/MHz, Hibernation <100nA
- 3-axis capable quad-decoder (active in hibernation)
- RTC with 10ms resolution
- 18mm x 14mm x 2.5mm package (with castellated pins for easy prototyping)
Comparison
Applications
Applications
- Crowdsourced location tracking
- Asset tracking
- Connected health
- Human interface device
- Activity tracker
- Data logger
- PoS reader
- Metering
- High-end voice RCU
- IoT end node
- Toys
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| SmartBond™ Development Tools SmartSnippets™ Studio is a royalty-free software development platform for SmartBond™ devices.
|
Software Package | Renesas |
| Renesas Bluetooth® Low Energy Mobile Application Suite Renesas’ comprehensive collection of Bluetooth® Low Energy mobile applications: SmartBond, SmartConfig, SmartConsole, SmartTags, and SUOTA
|
Software Package | Renesas |
| SmartBond™ Flash Programmer The Renesas SmartBond™ Flash Programmer tool lets the user program a flash device for the DA1453x, DA1458x, DA1469x, and DA14592 SoCs.
|
Software Package | Renesas |
| e² studio Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
|
IDE and Coding Tool | Renesas |
| Bluetooth Low Energy Crowdsourced Locationing Solutions Renesas offers Google Find My Device and Apple Find My™ network SDKs, hardware design examples, and support tools for demonstration and application development.
|
Solution Toolkit | Renesas |
5 items
|
||
Sample Code
Boards & Kits
SmartBond™ DA14592 Module Bluetooth Low Energy 5.2 Daughterboard
The DA14592MOD-0100DB-P daughterboard is specifically designed for use with the DA14592MOD-01DEVKT-P development kit and can be easily attached to its motherboard. It...
Bluetooth Low Energy SoC 16-site Production Line Tool Kit
Renesas offers a production test and programming unit that enables you to reduce the time to ramp-up at a lower cost. The Production Line Tool (PLT) helps to increase...
