Low Power Bluetooth Pmod Board (Renesas QuickConnect IoT)
The US159-DA14531EVZ Low Power Bluetooth® Pmod™ module enables the user to add low-power Bluetooth capability to any evaluation kit or microcontroller board equipped...
Featured Documents:
Overview
Description
The US159-DA14535EVZ Bluetooth® Low Energy Pmod™ board enables users to add low power Bluetooth capability to any evaluation kit or microcontroller board equipped with a Pmod expansion capability. The board provides a standard Pmod Type 3A (Expanded UART) connection for the onboard Bluetooth 5.3 module.

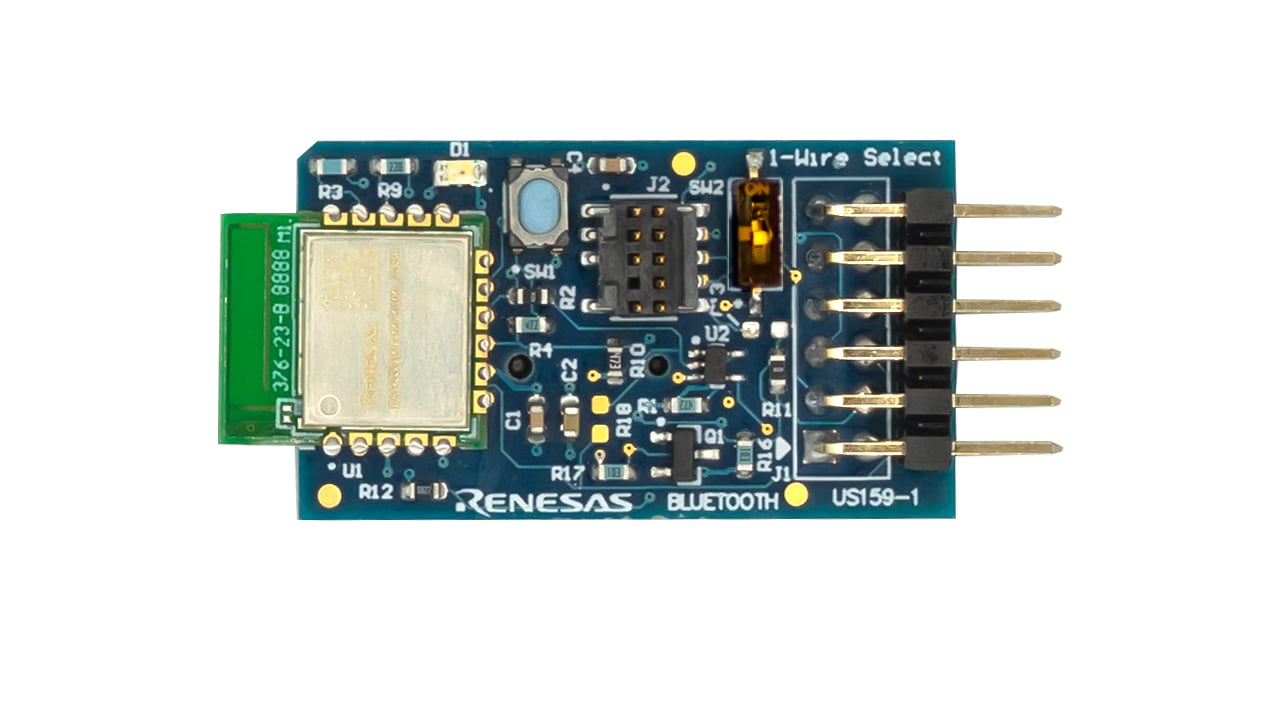

The US159-DA14535EVZ features a Type 3A Pmod connector and incorporates the DA14535 SmartBond TINY™ Module, based on the world’s smallest and lowest power Bluetooth 5.3 System-on-Chip (SoC). Thanks to the standard connector and software support, the US159-DA14535EVZ is ideal for Renesas' QuickConnect platform to rapidly create an IoT system.
Features
- DA14535 SmartBond TINY™ Module
- Cortex®-M0+ at 16MHz
- Memory: 64kB RAM, 12kB OTP and 160kB ROM
- Bluetooth 5.3 core qualified
- Integrated chip antenna
- Worldwide certification
- 3.3V supply voltage
- +4dBm maximum output power
- -92.5dBm receiver sensitivity
- 2.7mA Rx at VBAT = 3V
- 2.6mA Tx at VBAT = 3V and 0dBm
- Standardized Type 3A Pmod™ connector supports Expanded UART interface

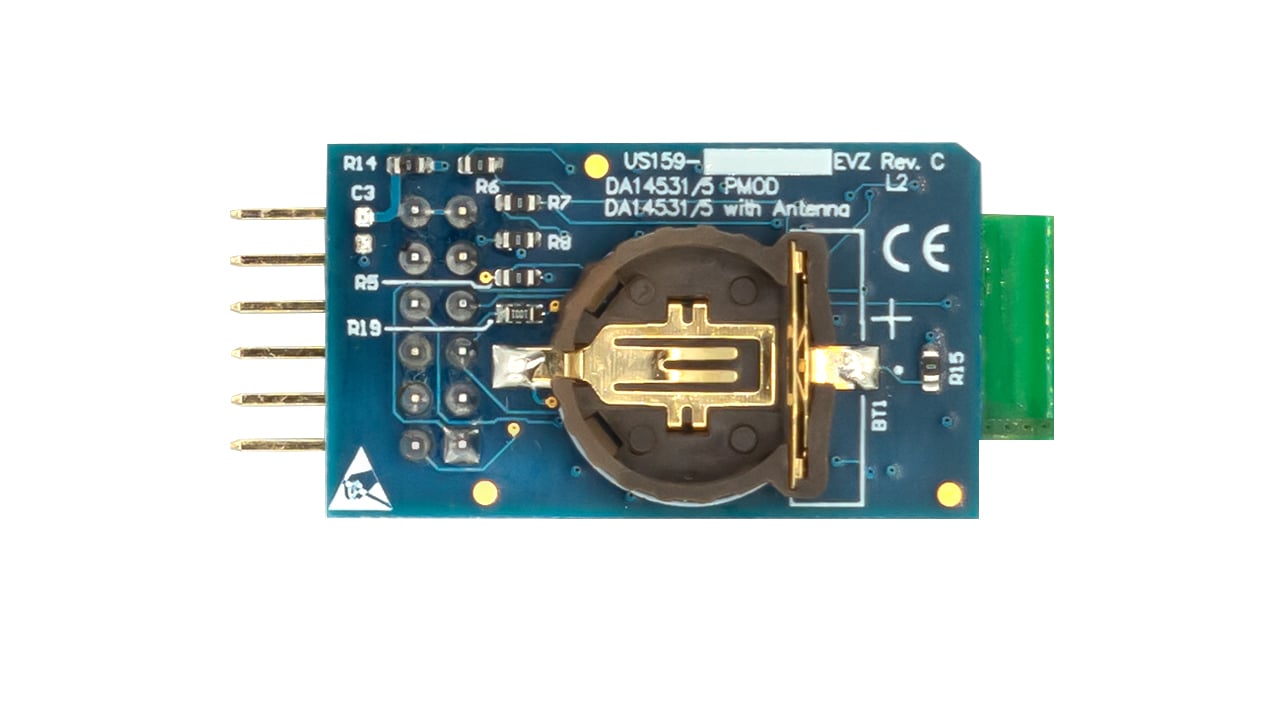

- Optional battery operation with onboard CR1220 coin cell
- Momentary pushbutton switch (SW1) to aid in user software debug
- LED (D1) to aid in user software debug
- 10-pin 1.27mm pitch Arm® Cortex®-Debug connector (J2) for software development and debug support
Check the Boards Comparison table to choose a board that suits your requirements.
Applications
- Medical applications
- Disposables
- Beacons
- Proximity tags and trackers
- Wireless sensor nodes
- Smartwatches
- Human interface devices (HID)
- Toys
- Industrial appliances
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 1.66 MB | |
| Quick Start Guide | PDF 854 KB | |
2 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QuickConnect Platform QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
|
Software and Hardware Development Tools | Renesas |
| SmartBond™ Flash Programmer The Renesas SmartBond™ Flash Programmer tool lets the user program a flash device for the DA1453x, DA1458x, DA1469x, and DA14592 SoCs.
|
Software Package | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
3 items
|
||
Sample Code
Related Boards & Kits
Processing table
US159-DA14535EVZ Active Samples Available |
Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Boards Comparison
| US159-DA14535EVZ | US159-DA14531EVZ | |
|---|---|---|
| Memory | 64kB RAM, 12kB OTP, and 160kb ROM | 4kB RAM, 32kB OTP, and 1Mb Flash |
| Bluetooth support | Bluetooth 5.3 core qualified | Bluetooth 5.1 core qualified |
| Sensitivity | -92.5dBm | -93dBm |
| Rx current | 2.7mA at VBAT = 3V | 2mA at VBAT = 3.3V |
| Tx current | 2.6mA at VBAT = 3V and 0dBm | 4mA at VBAT = 3.3V and 0dBm |
| Output power | +4dBm maximum | +2.2dBm maximum |
